10 Best practices for organizing electrical system models

by Ines Eberena

March 7, 2026

Key Takeaways

Set scope and study intent first so model fidelity, solver choices, and outputs stay consistent with the questions you need answered.
Use strict conventions for naming, units, signal flow, and subsystem ports so large power system models stay readable and reusable across teams and labs.
Protect repeatability with shared libraries, small test harnesses, centralized scaling, and stored initialization and solver settings, then keep quality steady with a simple review checklist.

You can keep large electrical models clear, reusable, and testable with a few consistent structure rules.

“Good organization removes the hidden work that slows teams down, like hunting for parameters, guessing signal meaning, or fixing the same wiring mistake in five places.”

It also makes results easier to trust because assumptions stay visible instead of getting buried inside deep subsystems.

Model size is not the main problem; inconsistency is. A well-structured EMT or phasor model can grow for years without becoming fragile, as long as you treat model structure like an engineering interface and not just a drawing exercise.

Set scope and study intent for large power system models

The cleanest model organization starts with a strict scope statement that defines what questions the model must answer and what it will ignore. You should lock down study type, event set, accuracy needs, and the outputs you will use to judge success. That scope then sets the right level of switching detail, control bandwidth, and network size.

Write scope in terms of test cases and measurements, not in terms of blocks you plan to draw. Identify the boundary buses, the measurement points, and the disturbance types you will apply. Keep a short list of non-goals so you do not accidentally mix studies, such as protection timing validation and converter loss estimation, inside the same baseline model.

Standardize naming, units, and signal flow conventions early

Consistent naming and units turn a complex diagram into something you can scan and verify. Signal names should tell you what the value represents, its reference frame, and its units. Port direction should stay consistent across the whole model so you do not need to read every wire to understand causality.

Write these conventions down once and apply them to every new subsystem and library block. A small amount of up-front discipline prevents confusion later when multiple people touch the same models across labs, projects, or course terms.

Use one bus naming pattern across all voltage levels
Add unit hints in signal names such as kV, A, pu
Keep control signals flowing left to right across diagrams
Reserve one colour scheme for measurement and logging paths
Document reference directions for power, current, and torque

10 best practices for organizing electrical system models

These practices focus on readability first, then reuse and testability. Each one reduces a specific failure mode such as duplicated logic, hidden scaling, or solver changes that silently alter results. Apply them in order when you refactor an existing model, or as a checklist when you start a new one.

1. Split models by voltage level and functional purpose

Partition the model so each layer has one clear job, such as transmission, medium voltage feeders, or low voltage converter connection. Keep each partition small enough that you can validate it with focused tests. Tie partitions together through defined buses and interfaces, not ad hoc wiring. This keeps changes local when a study scope shifts.

2. Keep top diagrams shallow with clear left to right flow

Use the top level to show structure, not detail. A shallow diagram with a consistent left to right signal flow lets you understand the full system in minutes. Group blocks so the power path is obvious and the control path is separate. Push detail down into subsystems so the top does not become a wiring map.

3. Use subsystems to hide detail and expose key ports

Subsystem boundaries should match engineering boundaries, such as a converter, a feeder segment, or a protection relay function. Expose only the ports needed to connect and test that subsystem. Keep internal measurement, scaling, and filter details inside the subsystem so the interface stays stable. Treat subsystem ports like a contract you do not casually break.

4. Separate EMT switching detail from average value sections

Mixing switching models and average value models without clear boundaries makes results hard to interpret. Keep high-frequency switching detail in dedicated areas so time step and solver choices remain obvious. Place average value equivalents in separate subsystems with the same external ports where possible. This supports quick study swaps without rebuilding the diagram.

5. Put reusable components in a shared library structure

Reusable models belong in libraries, not copied across projects. Library blocks keep fixes and improvements consistent, and they reduce the risk of silent divergence between similar subsystems. Keep libraries organized by function, such as machines, converters, networks, and protection. Add short descriptions so new users choose the right block on the first try.

6. Centralize base values, per unit scaling, and unit checks

Scaling mistakes often look like control instability or network faults, so treat unit management as a first-class design task. Store base values and per-unit conversion in one place and reference them everywhere. Add simple unit checks on key signals so errors show up early. Keep conversions close to interfaces, not scattered across the diagram.

7. Use consistent parameter sets with defaults and limits

Parameter sprawl makes models fragile because small edits change behaviour in unexpected ways. Group related parameters into structured sets and keep defaults close to typical studies. Add limits and sanity checks to catch impossible values before simulation starts. Maintain a clear separation between physical parameters and tuning parameters.

8. Separate power network, controls, protection, and measurements

Separate domains so you can review and test each one without distraction. Keep the power network focused on impedances, sources, and switching, while controls and protection stay in their own areas. Route measurements through a dedicated logging layer so instrumentation does not clutter functional logic. This structure also makes it easier to compare control versions against the same network baseline.

9. Add small test harness models for each major subsystem

A test harness gives you a fast way to validate a subsystem without loading the full system model. The harness should provide boundary conditions, reference inputs, and checks for expected outputs. A simple harness might feed a converter model with a DC source, a grid Thevenin equivalent, and a step in current reference while logging DC link ripple and line current distortion. Keep harnesses versioned beside the subsystem so updates stay linked.

10. Store solver settings, initialization, and annotations with models

Solver changes can shift results even when the diagram looks identical, so settings must be treated as part of the model. Keep initialization steps close to the subsystem they apply to, and write annotations that state assumptions and limitations. Use consistent initial conditions so test cases are repeatable. Capture any required configuration so someone else can run the model without guessing.

“Subsystem boundaries should match engineering boundaries, such as a converter, a feeder segment, or a protection relay function.”

Practice	Main takeaway
1. Split models by voltage level and functional purpose	Clear partitions keep changes local and verification focused.
2. Keep top diagrams shallow with clear left to right flow	Top levels should explain structure quickly, not show wiring detail.
3. Use subsystems to hide detail and expose key ports	Stable interfaces reduce rework when internals change.
4. Separate EMT switching detail from average value sections	Clear modelling boundaries prevent hidden solver and fidelity conflicts.
5. Put reusable components in a shared library structure	Libraries prevent copied blocks from silently diverging across projects.
6. Centralize base values, per unit scaling, and unit checks	Central scaling avoids unit errors that look like system instability.
7. Use consistent parameter sets with defaults and limits	Structured parameters keep behaviour predictable and reviews faster.
8. Separate power network, controls, protection, and measurements	Domain separation makes testing and troubleshooting more direct.
9. Add small test harness models for each major subsystem	Harnesses keep subsystem validation quick and repeatable.
10. Store solver settings, initialization, and annotations with models	Repeatable runs require solver and initialization to travel with the model.

Design subsystem interfaces for reusable simulation models and labs

Reusable simulation models depend on interface discipline more than clever internal implementation. Define what each subsystem accepts and produces, then keep that interface stable across versions. Use clear port names, documented signal units, and explicit reference directions so connections stay correct even when the model is reused in another system.

Interface discipline also supports teaching and team work because students and new engineers can connect blocks without guessing intent. SPS SOFTWARE users often get the best results when subsystems behave like well-defined components, with parameter sets that travel cleanly between lab exercises and research studies. Keep optional features behind parameters, not separate ad hoc copies of the same block.

Use review checklists and model metrics to guide refactors

Refactoring works best when you review structure the same way you review protection settings or control gains. Use a short checklist that flags duplicated logic, hidden scaling, inconsistent naming, and unclear subsystem boundaries. Track a few simple metrics, such as number of duplicate blocks removed, number of interface ports simplified, and count of unit conversions pushed to boundaries.

Good model organization is visible in daily work because debugging becomes faster and test cases become easier to repeat. SPS SOFTWARE fits well when you want transparent, physics-based modelling where the structure stays readable as complexity grows. Treat organization as part of engineering quality, and the model will stay useful long after the first study is finished.

Electrical Engineering

Modelling faults and switching events in electrical networks

by Ines Eberena

March 3, 2026

Key Takeaways

Start with a measurable study goal, then match model detail to the specific transient or duty you must verify.
Use EMT only when waveform timing and switching physics will change the decision, and use RMS for broad screening and longer time windows.
Protect accuracy first with disciplined event timing, fault impedance, and boundary equivalents, then improve speed through focused network reduction and time step control.

Accurate fault and switching models will give you transient results you can trust.

Fault studies only pay off when the model matches the event you’re trying to understand, not just the one you can simulate quickly. Power interruptions are costly enough that avoidable modelling errors matter, with a Lawrence Berkeley National Laboratory study estimating about $44 billion per year in outage costs for U.S. electricity customers. That kind of impact is why disciplined fault and switching event modelling is worth the effort.

“The practical stance is simple: start with the study goal, pick the lightest model that can still answer it, and only then optimize speed.”

Breaker operations, fault impedance, and protection timing sit right on the line between “good enough” and “misleading.” Getting those details right will save you from confident looking plots that point to the wrong engineering action.

Start with the fault and switching study goals

Define the goal in terms of a measurable outcome and a pass fail check. You should know if you’re validating protection operation, checking equipment duty, or confirming ride through behaviour. Each goal implies a different time window, network detail, and output set. Clear goals stop you from overbuilding models that run slowly but answer nothing.

Lock down a minimum set of study inputs before you touch model detail. This keeps the team aligned on what must be accurate and what can be simplified. It also makes reruns and reviews much easier, since you can see what changed and why. These five items are usually enough to start well:

Define the fault types and switching events you must represent
Set the exact event times and required sequencing constraints
Choose the outputs that decide pass fail for your study
Confirm the source strength assumptions at the study boundary
Agree on acceptable run time and acceptable error bands

Goal clarity also forces a useful question early: do you need waveform detail, or do you need system level trends. If your answer is “both,” split the work into phases, since one model rarely serves both needs well. That split is also where most simulation time savings come from, without cutting corners on the part that matters.

Choose EMT or RMS simulation based on transient detail

EMT simulation is the right choice when switching transients, harmonics, and fast control interactions matter. RMS simulation is the right choice when you mainly need phasor magnitude and angle behaviour over longer periods. The selection should follow the time scale of the phenomenon you’re studying. Picking EMT for every case will slow you down and still won’t fix poor event modelling.

EMT uses small time steps to resolve high frequency content, so it captures breaker prestrike, transformer inrush, and converter switching effects when model detail supports it. RMS assumes sinusoidal steady behaviour within each step, so it suits load flow, slower voltage recovery, and stability style studies. A common workflow uses EMT for the first tens or hundreds of milliseconds, then shifts to RMS once the fast energy exchange settles. That handoff only works if you define what “settled” means in your outputs.

Study need	EMT simulation tends to fit	RMS simulation tends to fit
Breaker or switch transient duty	Captures steep recovery voltage and current chopping effects	Misses high frequency detail that sets peak stress
Protection timing based on instantaneous quantities	Matches time domain pickup and filtering behaviour	Needs careful approximations for fast elements
Long duration voltage recovery and stability	Runs slowly and can hide trends in heavy detail	Runs fast and highlights system level trajectory
Converter and harmonic interactions	Represents switching ripple and control coupling if modelled	Often reduces converters to averaged behaviour
Study turnaround time for many contingencies	Becomes costly unless the network is reduced carefully	Supports broad screening with reasonable computation time

Tooling matters less than model transparency when you need to justify results. SPS SOFTWARE supports physics-based EMT and RMS modelling where you can inspect and edit component behaviour, which helps teams stay consistent across study types. That consistency is a practical advantage when results must survive review and reuse. It also helps you avoid hidden assumptions that only show up after you’ve spent hours on runs.

Model short circuit faults with location impedance and timing

Fault simulation in power systems starts with three choices that control most outcomes: fault type, fault impedance, and the exact time of inception and clearing. Location matters because network impedance changes with distance and topology. Timing matters because the voltage angle at inception sets the first peak. If those inputs are vague, the results will be vague too.

Most studies should prioritize single line to ground representation, since that fault class dominates many systems. Single line to ground faults are often cited as about 70% of power system faults in instructional protection material. That statistic is useful because it tells you where modelling effort will pay back first. It also supports using multiple impedance values, since “solid” and “resistive” ground faults stress different parts of the system.

Fault impedance should reflect the physical path, not just a convenient number. Arc resistance, tower footing, cable sheath return, and contact surface conditions all shift current magnitude and DC offset decay. Clearing time should be tied to the protection and breaker sequence you expect, including any intentional delay. If the study target is equipment duty, you also need to model how the network upstream is represented, since a weak Thevenin source can cut peaks sharply.

Represent breaker and switch operations with realistic contact behaviour

Breaker modelling should match the stress you’re checking, not just the logic you’re implementing. An ideal switch that toggles open and closed at a time instant will often be fine for phasor studies. EMT fault analysis needs more care, since contact parting, arc extinction, and restrike can shape the first few milliseconds. Switching event modelling becomes misleading when the breaker is treated as perfectly clean.

Start with the simplest representation that still captures the key quantities. Controlled switching needs a model that respects current zero crossing, since mechanical opening time and pole scatter affect interruption. Transformer energization studies need prestrike behaviour to get inrush right, since the effective closing angle is rarely the commanded time. Capacitor bank switching can need preinsertion elements or damping if you’re evaluating transient overvoltage.

Contact behaviour also ties directly to how you align events in the simulation. A breaker command time is not the same as contact separation time, and a trip signal is not the same as current interruption. Model event delays explicitly, keep them consistent across phases, and document them as parameters. That habit makes sensitivity checks easier when someone questions why one run looks different from another.

Handle protection logic reclosing and transient fault clearing

Protection and reclosing logic must be represented as a sequence of measurements, decisions, and actuator delays, not just a single open command. Transient faults clear only if arc extinction and deionization are plausible within the dead time. If you skip these mechanics, you can accidentally “prove” a scheme works when it depends on timing that the field will never achieve. You’ll get the most value when protection and breaker models share the same timing assumptions.

Consider an overhead 25 kV feeder with a recloser protecting a lateral. A line to ground flashover occurs at 0.12 s with 15 ohms of fault resistance, the relay asserts a trip after 25 ms of filtering, and contacts part 35 ms later with a 400 ms dead time before reclosing. The simulated voltage recovery and the second close current will look completely different if the dead time is 200 ms, or if you assume instantaneous interruption at the trip time. That single timing chain often decides if the transient fault clears cleanly or becomes a sustained event.

Accurate relay behaviour does not require modelling every internal block, but it does require matching what the relay “sees.” Filtering, phasor estimation window length, and CT saturation can all shift operate time and element security. Align those assumptions with the study goal, then check sensitivity to the timing parameters you can’t control tightly. When results hinge on a few milliseconds, the right response is usually better modelling discipline, not more optimism.

Improve simulation speed while keeping switching transients accurate

Simulation speed improves most when you reduce unnecessary bandwidth and unnecessary network detail, while keeping the event physics intact. EMT runs slow mainly because of small time steps and large state counts. You can shorten runs by focusing high fidelity only around the faulted area and the switching devices that drive the transient.

“Speed work should never start until you know which waveforms must remain trustworthy.”

Network reduction is often the safest first move. Replace distant parts of the grid with Thevenin equivalents that match short circuit strength and X to R ratio over the frequency range you care about. Keep transformers, cables, and reactors that shape transient voltage and current near the switching point. Set a time window that ends once the quantity of interest settles, since modelling an extra second at EMT resolution can waste most of your runtime.

Time step selection deserves equal care. Too large a step will smooth peaks, distort interruption, and shift protection timing. Too small a step will bury you in computation with little gain. A good practice is to run one high-fidelity baseline case, then adjust reductions and step size until key peaks and timings stay within your acceptance bands.

Validate results and avoid common fault modelling mistakes

Validation means checking that the simulation behaves like a power system, not like a plot generator. You should verify that pre-fault load flow and voltages match expectations, and that fault current levels are consistent with short circuit calculations. Energy storage elements must show physically reasonable exchange, especially during switching. If those checks fail, speed and detail choices won’t rescue the study.

Common mistakes tend to cluster around timing and boundaries. Trip time is often confused with contact separation, and close time is often confused with effective electrical closing angle. Source equivalents get reused across cases even when topology changes, which quietly shifts fault level and DC offset. Fault impedance is set to zero for convenience, then the results are used to justify protection settings that will never see that condition.

Good fault simulation power systems work is mostly disciplined repetition, not heroic modelling. You’ll get better outcomes when every case has the same event definitions, parameter naming, and validation checks, since differences then become meaningful rather than accidental. SPS SOFTWARE fits well when you need transparent models that can be inspected and controlled, since trust builds from what you can explain, not what you can run. The strongest studies finish with a simple judgment: if the result cannot be defended from inputs to waveforms, it is not ready to guide an engineering choice.

Electrical Engineering

Thermal And Switching Effects In Power Electronics Models

by Ines Eberena

February 16, 2026

Key Takeaways

Coupled electrical loss and thermal path modelling will expose peak junction temperature and device stress that average efficiency numbers hide.
Switch loss modelling becomes reliable when it uses operating-condition inputs and feeds a calibrated RC thermal network with explicit cooling boundaries and derating limits.
Validation against measurable temperatures and careful handling of temperature-dependent parameters will prevent optimistic results and support defensible thermal margins.

Loss estimates that ignore temperature rise will understate device stress, hide thermal derating limits, and push designs into avoidable failure modes. A simple reliability heuristic shows why engineers can’t treat temperature as a secondary detail: a Q10 value of 2 means a process rate doubles for a 10°C rise. Switching loss and junction temperature interact in exactly that compounding way.

“Accurate power electronics models must treat heat and switching as coupled effects.”

Good modelling does not mean maximum complexity. It means choosing loss and thermal detail that matches the decisions you need to make, then keeping the model consistent from electrical waveforms through to junction temperature. When you connect those layers cleanly, you can size cooling, set safe operating limits, and justify stress margins with numbers you can defend.

Start with loss and thermal paths you must model

Start by mapping where power turns into heat and how that heat leaves the device. You need a loss model that produces watts under the same conditions your converter will see, plus a thermal path model that turns watts into junction temperature. If either side is missing, the model will look stable while the hardware runs hot. The best starting point is a power balance you can check at every operating point.

Most teams get better results faster when they define a small set of “must-model” paths before tuning any parameters.

Switch conduction loss based on current and on-state voltage behaviour
Switching loss based on switching energy and switching frequency
Diode reverse recovery loss or channel conduction during commutation
Junction to case thermal impedance and its transient shape
Case to heatsink and heatsink to ambient thermal resistance

Thermal paths are only as accurate as their boundary conditions. Ambient temperature, airflow assumptions, mounting torque, and interface material choice will move case temperatures enough to invalidate a careful switching model. Keep the first pass simple, then tighten the pieces that change a decision, such as heatsink sizing or current limit strategy.

Model conduction and switching losses across operating conditions

Conduction and switching losses should be modelled as functions of current, voltage, switching speed, and temperature, not as fixed constants. Conduction loss is usually a voltage drop or resistance curve, while switching loss is best represented through switching energy values that scale with current and bus voltage. You’ll get the most useful results when your loss model responds to the same waveforms your control produces. That alignment turns a simulation from “average watts” into stress you can manage.

Switch loss modelling usually starts with datasheet energy curves, then adds the conditions your design changes: gate resistance, deadtime, and commutation path inductance. Those details matter because switching losses often rise when you make switching edges slower for EMI reasons, while conduction losses rise when you accept higher current ripple for smaller magnetics. A good model keeps those tradeoffs visible instead of hiding them inside a single efficiency number.

Granularity is a choice. Average-loss models work well for heat sink sizing and steady operating points, while cycle-resolved loss accumulation is better for pulsed loads and short thermal time constants. Pick the simplest approach that still shows the peak junction temperature and the margin to your derating limits.

Link loss models to RC thermal networks and heatsinks

Connect electrical losses to a thermal RC network so your model produces junction temperature, not just power dissipation. A multi-pole thermal impedance captures both fast junction heating and slow case and heatsink warming, which is essential for pulsed operation. Use a structure that matches your available data, then keep node definitions consistent across the model. Once watts flow into the network, temperature behaviour becomes predictable and testable.

Foster networks are convenient when you’re fitting published transient thermal impedance curves, while Cauer networks are easier to interpret physically when you need temperatures at internal layers. Both can work if you preserve energy and you don’t mix parameter sources. Mutual heating matters for multi-switch modules, so shared baseplate and heatsink nodes should be explicit when devices are physically close.

SPS SOFTWARE users often treat the thermal network as a first-class part of the converter model, because transparent, editable RC blocks make it easier to trace which assumption set a temperature limit. That workflow also fits cleanly into MATLAB/Simulink pipelines where electrical and thermal subsystems need to stay synchronized.

Model choice	What you can trust from results	Common failure mode when simplified too far
Fixed loss constants at one operating point	Rough steady heat sink sizing near that point	Peak junction temperature is missed during transients
Lookup tables for loss versus current and voltage	Efficiency and heating across a speed torque map	Wrong values appear when temperature changes strongly
Switching energy-based loss with waveform inputs	Loss sensitivity to control timing and commutation	Gate resistance and stray inductance effects are ignored
Single Rth and Cth thermal model	Slow thermal trends over many seconds or minutes	Short overload limits look safer than they are
Multi-pole thermal impedance with heatsink node	Peak and average junction temperatures under pulsed load	Bad boundary assumptions shift every temperature result

Represent temperature-dependent parameters and thermal derating limits

Temperature behaviour becomes believable when electrical parameters change with temperature inside the same model. On-state voltage, on-resistance, diode drops, and reverse recovery behaviour all shift with junction temperature, which feeds back into losses and can create runaway if you’re not careful. Thermal derating should be represented as an explicit limit, not as a vague “safety factor.” Clear derating logic turns temperature outputs into actionable operating constraints.

Temperature dependence does not stop at semiconductors. Copper’s temperature coefficient of resistivity is about 0.0039 per °C, so busbars, windings, and shunts dissipate more as they warm, and that heat often sits close to the power module. A model that keeps copper losses fixed will understate enclosure heating and distort case temperature predictions.

Derating should reflect the device’s published limits and your packaging limits. Junction temperature caps, maximum case temperature, and maximum allowable current at a given heatsink temperature can all be represented as conditional clamps that your control or protection logic respects. That approach also makes it easier to discuss risk with non-specialists, because a limit is easier to interpret than a hidden margin inside a parameter.

Predict transient junction temperature and manage device stress margins

“Transient junction temperature is the number that ties switching loss modelling to device stress.”

Peak junction temperature, temperature swing, and the rate of temperature change all contribute to wear mechanisms in bonds, solder, and packaging interfaces. A model that only reports average temperature cannot tell you if a short overload is safe. Treat thermal time constants as part of the design, not as a detail for later validation.

A concrete way to apply this is a motor drive that sees short torque bursts: a step from moderate load to near-rated current for a few seconds, repeated many times per hour, will create temperature swings that look small at the heatsink but large at the junction. The electrical model provides current ripple and switching frequency, the loss model converts those into watts per device, and the RC thermal network shows peak junction temperature during each burst. That output lets you set an overload timer and current limit that protects the device without giving up normal performance. It also shows when a “safe” average loss still causes damaging thermal cycling.

Stress margin should be expressed in terms you can track. Keep a clear distance to maximum junction temperature, but also watch repetitive temperature swing and current overshoot during commutation. Small changes to deadtime, gate resistance, or snubbering can cut switching losses while increasing voltage stress, so the margin you manage needs to include both thermal and electrical limits.

Validate models and avoid common thermal switching modelling errors

Validation should focus on removing the most common mismatches between simulated and measured temperature behaviour. Loss models must use the same reference conditions as the curves they came from, and thermal models must match how the device is mounted and cooled. Treat every parameter as “guilty until checked” when results look too optimistic. The goal is not a perfect model, but a model that fails in the same direction as the hardware.

Several errors show up again and again. Switching energy data is often applied outside its test voltage or gate drive, then scaled linearly when the physics is not linear. Thermal impedance curves are sometimes converted incorrectly between junction-to-case and junction-to-ambient, which bakes in the wrong boundary assumption. Temperature-dependent loss feedback is frequently omitted, which makes thermal derating look less necessary than it is.

Disciplined modelling means choosing a consistent loss basis, wiring it into a thermal network that matches packaging, and validating the full chain against temperatures you can measure. SPS SOFTWARE fits that discipline well when you need transparent, editable models that you can inspect, tune, and teach from, because clarity keeps teams aligned on what the numbers mean. Results that hold up over time come from tight assumptions and careful validation, not from extra complexity.

Electrical Engineering, Simulation

When Hardware Testing Becomes More Reliable With Digital Models

by Ines Eberena

February 9, 2026

Key Takeaways

Digital testing confidence comes from validated models that set expected ranges, limits, and pass criteria before any hardware stress.
Pre-test insights are most useful when they prioritise operating corners and the minimum measurements needed to prove or disprove key assumptions.
Reliable hardware testing improves when teams treat model mismatches as structured feedback, then update parameters, limits, and test sequences with discipline.

Hardware testing in power systems and power electronics fails when you treat first power-up as a discovery exercise. A model that matches your system’s physics turns testing into confirmation, because you arrive with expected waveforms, limits, and pass criteria instead of guesses. That matters because a single bad test can damage equipment, delay schedules, and put people at risk. Power interruptions alone cost the U.S. economy about $44 billion per year, and poor validation upstream is one way those costs show up downstream.

Digital testing confidence comes from disciplined model validation, not from running more simulations. Accurate models help predict behaviour because they capture the right structure, parameters, and control logic, then prove those assumptions against what you can measure. When you use modelling to get pre-test insights, you decide what to measure, what to limit, and what to try first, before any risky switching or fault work starts. The result is fewer surprises, cleaner test data, and faster root-cause work when results differ from expectations.

“Validated digital models make hardware tests more predictable and safer.”

Digital models set test expectations before hardware power-up

A digital model supports hardware testing when it defines expected signals and limits before you apply power. You use it to predict steady-state values, transient ranges, and protection thresholds. That gives you a baseline for judging anomalies during commissioning. It also reduces risk because you can pre-plan current, voltage, and thermal margins.

A practical case is a lab team preparing to commission a 250 kW grid-forming inverter feeding a small microgrid bus. The first simulation run uses the intended filter values, controller gains, and a range of grid impedances that could exist at the point of connection. You walk into the lab knowing the expected inrush, the settling time after a load step, and the waveform quality at the terminals. If the measured current spikes exceed the model’s upper bound, you stop and investigate the setup rather than pushing ahead.

Test expectations work best when they’re written down as checkable statements, not as plots you glance at once. You’ll also get more value if you treat the model as a contract between design, controls, and test teams, with a clear list of assumptions that can be challenged. That mindset keeps the model from becoming a “nice to have” file that nobody trusts under pressure. It also forces a system behaviour study to stay tied to measurements you can actually take in the lab.

Model output you should have	Checkpoint you set before first power-up	Why it makes testing more reliable
Expected steady-state voltages and currents at key nodes	Instrument ranges and alarm limits match predicted operating bands	You avoid saturating sensors and you spot abnormal conditions early
Step response to load changes and setpoint changes	Pass criteria include settling time and overshoot limits	You separate tuning issues from wiring and measurement errors
Protection pickup levels and trip timing assumptions	Trip thresholds are reviewed with the model as a reference	You reduce nuisance trips and avoid unsafe test escalation
Loss and thermal estimates under test profiles	Cooling checks and run durations align to predicted heating	You prevent damage during long sweeps or repeated transients
Sensitivity to uncertain parameters such as impedance and delay	Worst-case corners are prioritized in the test plan	You find weak points early instead of late and expensive retests

Pre-test studies find operating corners, limits, and needed measurements

Pre-test studies give you pre-test insights that shape what you test first and what you postpone. They identify operating corners where stability, protection, or thermal limits tighten. They also tell you which measurements will settle the biggest uncertainties. You gain confidence because your first hardware runs target the highest information value with the lowest risk.

That inverter commissioning case becomes manageable once the model sweeps the parameter ranges that you can’t know exactly on day one. You’ll see which combinations of grid impedance and controller gains create oscillations, and which ones stay well damped. You also learn where measurement quality matters, such as current sensor bandwidth during switching transients or voltage probe placement during fault tests. When the model flags a narrow stability margin, you plan smaller steps and shorter run times until the behaviour matches expectations.

Grid or load impedance corners that push damping and stability limits
Worst-case DC-link voltage and ripple under expected transients
Peak phase current and di/dt that set safe ramp rates
Protection coordination limits that affect trip timing and thresholds
Signals that must be logged at high resolution for root-cause work

These studies will only help if you treat the results as test inputs, not as design trivia. If a sweep shows that a 10% change in delay shifts stability, you will prioritise validating timing paths and sampling assumptions. If a sweep shows that impedance uncertainty dominates, you will plan a quick impedance characterization step before aggressive testing. The point is simple: pre-test work earns its keep when it reduces the number of “unknown unknowns” you carry into the lab.

Model validation methods that build confidence in digital test results

Model validation builds digital testing confidence when you prove structure and parameters against measurements you can trust. You validate in layers, starting with component checks and moving to subsystem behaviour. Each check tightens uncertainty and reduces the chance of matching data for the wrong reason. The goal is a model that fails loudly when assumptions are wrong.

Inadequate software testing has been estimated to cost $59.5 billion per year in the U.S. economy, and control-heavy power hardware suffers from the same pattern of late, expensive discovery. Your validation plan should include basic conservation checks, timing checks, and sensitivity checks before you compare complex waveforms. If the model predicts energy creation or loss that violates physics, it’s telling you something is structurally wrong. If small parameter changes cause large output swings, you learn where measurement effort will pay back.

Transparent models help here because you can inspect equations and assumptions instead of treating blocks as opaque. SPS SOFTWARE supports physics-based modelling with editable component detail, which matters during validation because you can trace results to parameters you can measure and defend. You’ll still need to manage fidelity choices, since switching detail, numerical step size, and controller timing can all shift outcomes. Validation is not about making plots line up once; it’s about showing the model stays honest across the operating band you plan to test.

Accurate models predict system behaviour under faults and control changes

Accurate models predict behaviour under faults and control changes because they capture interactions, not just steady-state points. Faults expose coupling among control loops, protection logic, and network impedance. Control changes expose timing, saturation, and limit handling. When those mechanisms are represented correctly, the model becomes a reliable way to anticipate failure modes before hardware sees them.

The inverter commissioning scenario is a good stress test for model fidelity because the “interesting” behaviour often happens during abnormal events. A voltage sag can push current limits and trigger control mode changes within a few cycles. A close-in fault can drive protection trips, then create a restart sequence with inrush and synchronization steps. If the model includes realistic limits, delays, and trip logic, you can predict which event sequences are safe to attempt and which ones require additional interlocks.

Prediction does not mean perfect matching of every oscillation. It means the model gets the dominant mechanism right and predicts the direction and magnitude of change when you vary a condition. You’ll also learn which parts of the design are robust and which rely on tuned settings that drift with hardware tolerances. That clarity supports better test sequencing, because you can keep early runs inside well-understood regions and expand outward with control over risk.

Turn model outputs into test sequences, safety checks, and criteria

Model outputs become useful in the lab when they translate into a test sequence with clear stop rules. You map predicted ranges to instrument settings, interlocks, and pass criteria. You also use the model to order tests from low-risk, high-information runs to higher-stress cases. This turns testing into a controlled comparison between predicted and measured behaviour.

In the inverter case, the sequence typically starts with low-voltage functional checks, then low-power synchronization, then incremental load steps, and only then controlled disturbance tests. The model tells you what “normal” looks like at each stage, so you can gate progress on clear criteria such as waveform distortion limits, current peaks, or temperature rise over a fixed duration. If the measured response differs, you pause at the smallest test that still reproduces the mismatch, because that isolates causes faster than jumping to a harsher run.

This is also where you decide what to log and at what resolution. A model that predicts the key state variables helps you avoid collecting a pile of signals that won’t answer the hard questions later. You’ll also decide which parameters you will identify from early data, then push back into the model to tighten later predictions. That loop is the practical bridge between modelling and safe hardware execution.

Common modelling mistakes that reduce trust during hardware testing

“Hardware testing becomes more reliable once the model earns its role as the reference, and once teams agree that mismatches are learning opportunities, not reasons to abandon the process.”

Trust breaks when a model hides assumptions, skips limits, or treats unknown parameters as fixed facts. It also breaks when the model is too detailed to validate, so nobody can explain why it matches. A reliable workflow keeps the model simple enough to defend and detailed enough to predict the test outcomes you care about. That balance is a management choice as much as a technical one.

The most common failure mode is validating against a single “good looking” waveform while ignoring sensitivity and uncertainty. Another is leaving out saturations, dead time, sampling delay, or protection latch behaviour, then acting surprised when hardware reacts sharply. Poor alignment between measurement points and model variables is also a quiet problem, because you end up comparing signals that are not truly equivalent. When those issues stack up, engineers stop using the model for pre-test insights and revert to guesswork under schedule pressure.

Disciplined execution fixes this, and it’s more important than any one tool. You’ll get better outcomes when you treat validation as a checklist of falsifiable claims, keep assumptions visible, and update parameters based on early measurements. SPS SOFTWARE fits well into that style because transparent, physics-based models are easier to challenge and refine when the lab data disagrees.

Electrical Engineering, Modelling, Simulation

7 Converter Models Every Engineer Should Build First

by Ines Eberena

January 30, 2026

Key Takeaways

Start with baseline rectification and a buck stage so your waveforms pass simple, repeatable checks.
Add nonideal details one at a time so switch based models stay explainable and debuggable.
Select the next model by the behaviour you must explain and by time step limits, not by topology novelty.

Build seven starter converter models and you’ll stop guessing about switching behaviour. Ripple and modulation will turn into signals you can verify. We’ll review results against the same baseline set.

New engineers keep asking what converter models should engineers build first. We can answer that with simple circuits that validate fast.

How these converter models build practical modelling confidence

A focused set of converter types links circuit states to waveforms you measure. Start with switch based modelling so commutation and ripple are visible. Add averaged versions only after switching passes checks. That routine sharpens DC and DC/AC modelling without hiding mistakes behind control.

Freeze control at fixed duty ratio and validate energy flow first. SPS SOFTWARE helps when you need open, inspectable component models.

Keep a single probe list across all models and sweep one parameter at a time. Power balance and volt second checks will catch most errors early.

“Power balance and volt second checks will catch most errors early.”

7 converter models engineers should build first

These seven models follow a practical order. Each circuit adds one concept and needs a plotted validation signal. Build each once with ideal devices, then once with one nonideal detail.

1. Uncontrolled diode rectifier as the baseline DC source

An uncontrolled diode rectifier teaches commutation without control or gate logic. Model a single phase bridge feeding a DC capacitor and a resistive load. Plot diode current pulses and DC bus voltage, then verify ripple rises with load current. Add a small source inductance, watch overlap conduction stretch pulses, and lower the bus. Measure diode conduction angle and input current crest factor so you can spot unrealistic source models. Save the DC bus ripple plot for later comparisons. This rectifier becomes the DC link you’ll reuse for inverter and motor load tests.

2. Buck converter for duty cycle and ripple understanding

A buck converter is a clean starting point for dc dc modelling because the checks are direct. Use an ideal switch, diode, inductor, capacitor, and a resistive load with a fixed duty cycle. Confirm average output voltage tracks duty times input during continuous conduction. Sweep the switching frequency and confirm that the inductor ripple current drops as the frequency rises. Step the load and confirm the output settles with a transient set by L and C. People asking how do you model DC DC converters should start here, then reuse its probes on every new topology.

3. Boost converter for non-ideal switching behaviour

A boost converter makes nonideal switching visible because current transitions are sharp. Build the ideal circuit first, then add one detail such as diode reverse recovery. Plot switch current at turn on and compare it to inductor current, since a spike will appear once recovery is present. Plot switch voltage at turn off and confirm transient peak and ringing grow when you add stray inductance. Add a small RC snubber and confirm peak voltage drops while losses rise. This model also provides a quick test of time-step resolution at the switching frequency.

4. Buck boost converter to expose mode transitions

A buck boost converter exposes operating modes that break assumptions about polarity and conduction. Model the inverting buck boost with fixed duty and a resistive load, then track output voltage sign and inductor current. Sweep duty from 0.2 to 0.8 and verify the gain curve steepens as duty rises. Lighten the load until inductor current hits zero and discontinuous conduction appears. Compare measured gain in that mode to the continuous conduction estimate and note the mismatch. Mode detection should be based on state variables.

5. Isolated flyback converter for magnetics interaction

A flyback converter forces magnetics into your model because magnetizing inductance stores energy. Use a coupled inductor element with turns ratio, magnetizing inductance, and leakage inductance. Add a clamp so switch voltage stays bounded when leakage energy releases. Validate the primary current ramp during the on interval and the reset during the off interval. Check that magnetizing current returns to the expected level each cycle, which confirms reset is working. Plot magnetizing current peak so you can spot saturation risk. Increase leakage inductance and confirm the clamp absorbs energy.

6. Single phase voltage source inverter with ideal switches

A single phase voltage source inverter is a fast step into dc ac modelling because the switching function is easy to see. Model a full bridge on a stiff DC link and drive it with a basic PWM pattern. Run an RL load and plot output voltage, load current, and ripple near the switching frequency. Swap PWM for a square wave and compare RMS current and peak current. Add an LC output filter and confirm that switching ripple drops as phase lag increases. Teams asking how can teams set up basic dc ac models can start with this inverter plus an RL load.

“Build each once with ideal devices, then once with one nonideal detail.”

7. Three phase inverter with basic modulation and load dynamics

A three phase inverter teaches phase relationships, line to line voltages, and load dynamics in one model. Start with a balanced three phase RL load and sinusoidal modulation at a fixed modulation index. Validate balanced phase currents and confirm line to line voltages match the expected fundamental magnitude. Sweep the modulation index and confirm that the fundamental voltage scales linearly until saturation. Feed the DC link from your rectifier model and watch bus ripple print into phase voltages. Add a small load imbalance and confirm phase currents shift as expected.

Uncontrolled diode rectifier as the baseline dc source	It gives you a DC link with visible diode commutation.
Buck converter for duty cycle and ripple understanding	It teaches duty ratio and ripple checks you can trust.
Boost converter for non-ideal switching behaviour	It shows nonideal effects as stress at switching edges.
Buck boost converter to expose mode transitions	It forces you to detect operating modes from plotted states.
Isolated flyback converter for magnetics interaction	It links magnetics settings to current ramps and stress.
Single phase voltage source inverter with ideal switches	It turns DC into AC with simple modulation validation.
Three phase inverter with basic modulation and load dynamics	It ties modulation, loads, and DC bus ripple in one place.

How to choose which converter model to build next

Pick the next model based on the converter types you need to explain. Switching loss work requires switch-based modelling, while control tuning often works with an averaged power stage once waveforms are trusted. Time step limits and switching frequency set hard boundaries on model detail.

Start from the closest existing model and add one feature, such as dead time or a nonlinear load. SPS SOFTWARE fits well when you need editable models that students and senior engineers can read without translation.

Treat model building like a checklist sport. Clear probes and pass fail plots will keep reviews calm.

Electrical Engineering, Modelling, Simulation

Why EMT Precision Matters For Recreating Electrical Events With Confidence

by Ines Eberena

January 28, 2026

Key Takeaways

EMT precision is a timing problem first, so waveform checks must focus on early cycles and fast transients.
High detail modelling earns its cost only when it reproduces limits, logic states, and device interactions seen in recordings.
A small set of repeatable waveform checks will keep event recreation honest and reviewable.

Accurate event recreation lets you replay a disturbance and trust the cause you identify. Published estimates place the annual U.S. cost of power outages between $28 billion and $169 billion, so wrong findings cost real time and money. You can’t fix what you can’t explain. EMT precision turns waveforms into evidence.

EMT precision matters because disturbances live in timing, not averages. A replay that matches RMS values but misses the first cycles will point you at the wrong device or setting. High detail modelling adds effort, so it needs checks you can run and repeat. The goal stays simple: match the waveform parts your study will use.

EMT accuracy defines how closely simulations reproduce electrical events

EMT accuracy means your simulated voltage and current traces match measured waveforms on the same timeline. The match has to hold before the disturbance, during the first cycles, and through recovery. Phase, polarity, and sequence must line up, not just magnitude. If those checks fail, event recreation becomes unreliable.

A common case is replaying a feeder fault captured at a substation. You align pre fault loading, apply the fault at the recorded time, and compare the voltage dip depth against the recorder. You also check current peaks and their decay, since DC offset and saturation shape early cycles. The recovery shape matters too, such as a slow return linked to stalled motors.

Accuracy is a set of pass/fail checks tied to what you need to decide next. Protection studies care about the first cycles because pickup and trip logic live there. Control studies care about the next few hundred milliseconds where limiters and synchronizing logic settle. Treat accuracy as a checklist, and your disturbance reproduction stays repeatable. It also keeps debates focused on measurable gaps.

“EMT precision turns waveforms into evidence.”

Precise event recreation depends on capturing fast switching and transients

Precise event recreation depends on capturing the fast physics that shape the first milliseconds. EMT precision comes from modelling switching, conduction states, saturation, and line effects at a time step that can resolve them. Some inverter connected generator models run with time steps as low as 1–2 µs, which shows how quickly key dynamics move. Coarser steps will blur peaks and shift event timing.

Capacitor bank switching is a clear illustration. The recorder often shows a voltage spike and bus ringing, not a clean step. Matching that ringing needs correct capacitor and reactor values, realistic upstream impedance, and a switch model that represents the closing instant. Small timing error will move the peak enough to break the match.

Transformer energization, breaker pole timing, and cable energization also create short bursts that set initial conditions. A replay can look close after 200 ms, yet internal controller states will already be wrong. Treat the first milliseconds as a gate check. That habit prevents long, late-night tuning sessions.

High detail modelling reveals disturbance behavior hidden by averaged models

High detail modelling reveals behavior that averaged models hide when limits and nonlinearities dominate. EMT will show current clipping, phase jumps, harmonic injection, and brief control mode switches that are smoothed out in averaged representations. Those details decide if equipment rides through, trips, or recovers cleanly. If the disturbance reproduction needs that decision, you need EMT detail.

An inverter ride through event during a close in fault shows the difference fast. An averaged model can hold current proportional to voltage and recover smoothly once voltage returns. A detailed EMT model will show current limiting, mode switching, and a short oscillation as synchronizing logic re locks. That short window can explain either a second protection pickup or a negative-sequence current spike.

Detail also exposes interaction between devices. Two converters can look stable in isolation and still fight through a weak network, producing repeated limiter hits after clearing. With EMT detail, you can test fixes you can actually implement, such as adjusting a current limit ramp. Without it, you’ll tune a model to match a story, not the event.

Accurate EMT results improve fault analysis and protection coordination studies

Accurate EMT results improve fault analysis because protection responds to waveform features rather than just RMS values. Relays react to peaks, DC offset, harmonic content, and phase angle shifts. If the replay captures those features, you can test settings changes with confidence. If it does not, you will tune protection to a waveform that never occurred.

A feeder relay that mis operated during a temporary fault and reclose is a practical example. The recorder shows fault current, then transformer inrush after reclose, plus a voltage sag that lasted long enough to trip an undervoltage element. An EMT recreation can separate those contributors at the same bus, including converter current limits that deepen the sag for a few cycles. Once timing is clear, you can adjust delays, pickups, or blocking logic in line with the record.

Coordination also depends on consistency across cases. If the model matches one fault record but fails on a second event elsewhere, topology or equivalents are wrong. EMT makes that gap obvious because it won’t hide timing errors behind averages. That clarity speeds up root cause work. It also reduces risky “trial and error” tuning.

Event replay quality shapes confidence in post incident engineering findings

Replay quality shapes what you will believe after an incident, because familiar looking waveforms feel convincing. A plausible but wrong replay will steer you toward the wrong cause and corrective action. A disciplined replay forces hard questions early, such as breaker status, event time stamps, and controller revision. That discipline turns event recreation into a reliable engineering tool.

A plant trip during a voltage dip shows why. Measured voltage returns, yet the plant stays offline and the operator log shows a latch. A low detail model can’t latch because internal state logic is missing, so the replay suggests the plant should have stayed online. A precise EMT replay that includes latch and reset conditions will reproduce the lockout and show the threshold crossing that triggered it.

The confidence bar should match the consequence of the finding. If the outcome warrants a retrofit, a settings change, or a compliance filing, the replay must stand up to review. Clear assumptions and repeatable waveform checks make that possible. Strong replay quality shortens debate and keeps focus on fixes.

“EMT makes that gap obvious because it won’t hide timing errors behind averages.”

Engineers should prioritize EMT detail based on disturbance study objectives

Better results come from prioritizing EMT detail around the disturbance you need to explain. Start with the signals that must match, then keep explicit models for the devices that shape those signals. Reduce everything else only when the reduction preserves transient response at your observation points. This focus controls model size and keeps run time under control.

A breaker operation at one bus needs detailed switching and nearby network impedance, not full detail everywhere. A corridor interaction between two converter plants needs detailed controls at both ends and enough network detail to preserve coupling. Teams using SPS SOFTWARE often formalize this workflow: define waveform checks, add detail until checks pass, then stop. That habit keeps modelling effort traceable, and it makes peer review simpler.

Study objective	Waveform checks to pass	Detail that usually matters
Relay pickup timing	Early cycles current and voltage	Saturation and DC offset
Converter ride through	Current limit and recovery	Control mode switching
Switching surge	Peak voltage and ringing	Switch and line detail
Fault location	Dip depth and phase shift	Topology and impedance
Lockout replay	Threshold crossings	Logic and timers

Common modelling shortcuts that reduce event recreation fidelity

Event recreation fails most often because small shortcuts stack up until timing no longer matches the record. The plots can still look smooth, so the error hides until pickup or latch behavior shows up in the field and not in the simulation. You avoid most failures by treating each shortcut as a hypothesis with a check. If the check fails, the shortcut goes.

Five shortcuts cause repeat problems in disturbance reproduction:

Using a time step too large for switching or saturation
Replacing controls with fixed current sources or gains
Omitting transformer saturation, inrush, or frequency effects
Ignoring event timing details such as pole scatter and delays
Forcing initial conditions that don’t match pre fault flows

Each shortcut breaks a different part of the replay, and the fix is clear once you see the mismatch. A too large time step will shift peaks and pickup times. Missing logic will erase latches and resets that operators see in logs. Teams that keep non negotiable waveform checks will stay honest over time. SPS SOFTWARE fits naturally when you need transparent, editable models you can inspect as carefully as you inspect the recordings.

Electrical Engineering, Modelling, Simulation

5 Steps To Build Inverter Control Models

by Ines Eberena

January 14, 2026

Key Takeaways

Timing, limits, and signal definitions will decide if tuning results carry to hardware.
PWM modelling depth should match loop bandwidth, with delays treated as first-class dynamics.
Inner and outer loop separation plus worst-case stability checks will prevent late-stage surprises.

A good inverter control model will predict stability before hardware runs. You will tune faster because control stability margins stay visible. You will catch phase loss and windup early. That matters more than matching switching ripple.

Most problems start when the model is too ideal. PWM modelling that ignores update delay will overstate phase margin. Inner loop control that skips sensor filtering will overstate bandwidth. Outer loop control that assumes a fixed grid or load will break as conditions shift.

What engineers need from an inverter control model before tuning begins

Lock down what the controller sees and when it sees it before you touch a gain. Put sample time, carrier rate, delay, and measurement filtering into the model. Define every signal with units, scaling, and sign. Add limits and saturations that will exist in hardware.

A three-phase inverter switching at 10 kHz with a 50 µs step is a good test bed. Duty updates once per step, so model a one-step delay from compute to PWM output. Add the same 2 kHz current filter and sensor scaling you plan to ship. Sweep DC link from 700 V to 900 V and vary grid inductance from 0.5 mH to 2 mH.

Timing and limits decide where crossover can sit without ringing. Hidden delay steals phase and turns a safe gain into oscillation. Missing saturation hides integrator windup and makes transients look gentle. A lean model with visible assumptions will beat a detailed model with hidden ones.

“Hidden delay steals phase and turns a safe gain into oscillation.”

5 steps to build inverter control models

Follow the build order you will implement. Lock targets and limits first, then choose a PWM abstraction, then close inner and outer loops. Check stability across operating points at the end. This order stops us from tuning around modeling errors.

Define control objectives and operating limits early	Clear numeric targets and hard limits prevent tuning gains that look stable in simulation but fail once saturation, faults, or range changes appear.
Select a PWM representation that matches control bandwidth	The PWM model must preserve timing and gain effects that shape phase margin, or control stability results will be misleading even if waveforms look clean.
Build the inner current loop with clear plant assumptions	A current loop stays predictable only when the electrical plant, sensing delay, and filtering are explicit and consistent throughout the model.
Add the outer voltage or power loop with proper separation	Outer loops remain stable when their bandwidth is intentionally slower than the current loop, reducing interaction and hidden instability.
Check control stability across operating points and delays	Stability must be verified at worst-case voltage, impedance, and delay conditions, not only at nominal operating points.

1. Define control objectives and operating limits early

Write objectives as numbers you can test, not as intentions. Pick the regulated variable, settling time, peak deviation limit, and steady-state error. Define the operating range for DC voltage, grid or load impedance, and any derating rules. Put current, voltage, and duty limits into the model as saturations and clamps. A 5 kW inverter might target 2 ms current settling while capping phase current at 12 A peak and clamping duty if DC drops under 720 V. Add what the controller does at the limit, such as freezing the integrator, back-calculating, or rate-limiting the reference. Write one pass-fail check per objective so tests stay consistent. Clear targets stop you from tuning a waveform that looks clean but violates limits on hardware.

2. Select a PWM representation that matches control bandwidth

Choose a PWM representation that preserves the delay and gain your controller will see. An averaged modulator fits loop design when crossover stays well below the carrier, but it still needs a duty update delay. A sampled-data modulator matters when bandwidth approaches one tenth of switching, since sample-and-hold lag steals phase. A switching model is for ripple, harmonics, deadtime effects, and filter resonance checks. A 1 kHz current loop with a 10 kHz carrier will tune reliably on an averaged model that includes one control-step delay and the correct modulator gain. Keep a second, switching-level model in SPS SOFTWARE if you want to verify ripple without rewriting the controller. Choose the simplest model that preserves stability margins, then add detail only where results disagree.

3. Build the inner current loop with clear plant assumptions

Inner loop control starts with a plant you can explain in one line. Model the filter you have, then keep the same sign convention and reference frame everywhere. Put sensing delay and filtering inside the feedback path, not as a plotting detail. With an L filter of 2 mH and 0.15 Ω resistance, the plant is close to 1/(Ls + R) before discretization. Discretize at a 50 µs step, then tune PI gains for a crossover near 1 kHz with margin left for delay. If you use an LCL filter, keep crossover well below the resonance peak. Treat any extra filter pole as lost phase you must budget. Add anti-windup early so a current clamp does not turn recovery into a slow drift.

4. Add the outer voltage or power loop with proper separation

Outer loop control will stay stable only when it is slower than the current loop. Pick the outer objective up front, because DC-link voltage control and AC voltage control see different plants. Treat the outer plant as uncertain, since grid strength and load type will vary. Keep the outer bandwidth at least 5x to 10x lower than the current loop so interactions stay small. A DC-link loop at 20 Hz to 50 Hz feeding a 1 kHz current loop will handle load steps cleanly. A grid-forming voltage loop around 100 Hz will still sit below the current loop, but it will require clean voltage sensing. Add rate limits and windup protection so the outer loop does not keep pushing when the inner loop is saturated.

“Choose the simplest model that preserves stability margins, then add detail only where results disagree.”

5. Check control stability across operating points and delays

Check control stability with the full loop, not an ideal diagram. Keep sampling, PWM delay, sensing filters, and saturations inside the loop model when you assess margins. Evaluate worst cases, including minimum DC voltage, maximum power, and a weak-grid impedance point. One stress test doubles grid inductance so an LCL resonance shifts toward crossover. Another test steps current reference into the limit so you see windup and limit cycling. Use loop gain plots to catch phase loss, then confirm with a time-domain step that includes clamps. Aim for margins you can live with after discretization, such as 45° phase margin and 6 dB gain margin. Keep a short regression set so small edits do not silently shrink margins across cases.

Applying these steps to avoid unstable or misleading control results

Unstable results usually trace back to hidden timing or hidden limits. A controller tuned with zero delay will look stable and then ring once a one-step update appears. A controller tuned without saturations will look linear and then stick during faults. Tight models keep these traps visible.

Picture a loop tuned on an averaged plant at 1 kHz crossover. Add a 2 kHz sensor filter and a 50 µs compute delay and phase margin drops. Fix the timing mismatch first, then adjust gains with the same tests each time. Keep three repeatable checks, a current step, a DC sag, and an impedance sweep.

Write assumptions where everyone can see them, then keep them under version control with the model. That habit makes tuning transferable across students, researchers, and product teams. SPS SOFTWARE helps when you need component equations and controller timing exposed so reviews stay concrete. Consistent execution will keep loops calm across operating points.

Electrical Engineering, Simulation

7 Ways To Improve Relay Coordination Studies

by Ines Eberena

January 13, 2026

Key Takeaways

Lock device data and fault levels before coordination tuning starts.
Write the primary and backup intents per zone so protection timing remains consistent.
Rerun curves and scenarios after each network or setting change to prevent drift.

Relay coordination clears faults fast. Healthy loads stay on. Inputs must be right for time current curves. Clear intent keeps timing steady. Most errors come from stale device data. Copied settings add risk. Curve checks tie results to actual trips. Notes keep settings defensible.

What defines an effective relay coordination study

An effective relay coordination study shows that the correct device trips first in the states you run. Device data and fault levels are verified. Time current curves show the needed separation. Notes explain why pickup and delays exist.

Use a long radial feeder with a midline recloser for testing. End-of-line faults sit near pickup and expose crossings. Coordination that holds at one fault point will fail later. A setting with no reason will force a repeat study.

7 ways to improve relay coordination studies

Lock inputs first. Use curves as checks. Keep each item single. Work in order.

Start with verified system data and consistent short circuit assumptions	Relay coordination fails when device data or fault levels are wrong, so validating inputs first prevents false confidence in curve spacing.
Define protection objectives before touching time current curves	Clear primary and backup intent gives protection timing a purpose and prevents random or copied settings.
Establish clear coordination margins across all protection zones	Consistent time margins account for breaker operation, tolerances, and delays so backup devices still wait when they should.
Use time current curves to expose grading conflicts early	Plotting curves across the full fault range reveals miscoordination that numerical checks alone will miss.
Tune protection timing from the load outward, not relay by relay	Setting downstream devices first reduces rework and keeps upstream coordination stable as adjustments are made.
Validate coordination across normal, contingency, and fault cases	Testing multiple operating states ensures coordination holds when the system configuration changes.
Reconfirm coordination after setting changes or network modifications	Any system or setting change can disrupt coordination, so rechecking curves helps prevent gradual protection drift.

1. Start with verified system data and consistent short circuit assumptions

Verified inputs are the fastest path to relay coordination. Confirm CT and PT ratios, breaker types, fuse links, xfmr impedances, grounding, and any motor or inverter fault contribution you include. A feeder relay set from a drawing that still shows an old CT ratio will coordinate on screen and trip late on site. Check xfmr tap position and source strength so short circuit levels match what the yard will see. Keep one fault basis for the tuning run so every time current curve uses the same fault levels. Track a source and date for each device record so updates don’t become guesswork. Rerun remote-end faults on long feeders after every model update, because weak faults always expose curve crossings first.

2. Define protection objectives before touching time current curves

Protection timing only makes sense after you state the protection objective. Write which device must act first for each zone and fault type, and what backup action you accept if the primary fails. A fuse-saving feeder will use a fast reclose shot, while a cable feeder will avoid reclosing and accept slower backup. If arc-flash limits matter, note the maximum acceptable clearing time at each bus before tuning. Those choices set pickup, delay, and instantaneous reach. An upstream relay should wait for downstream devices to report line faults, but act quickly for bus faults. Without it, settings get copied and schemes drift quietly later. Keep the objective note beside the time-current curves so “faster” requests don’t compromise selectivity.

“Without it, settings get copied and schemes drift quietly later.”

3. Establish clear coordination margins across all protection zones

Coordination margins turn “curves don’t touch” into “backup still waits in service.” Build in room for breaker opening time, fuse-clearing spread, relay tolerances, CT saturation, and any logic delay you add. Don’t forget breaker failure timers, since they add delay to backup clearing even when curves look clean. A lateral fuse with wide melt and clear scatter needs more spacing than a digital relay with tight timing. A recloser fast shot can erase margin if it lands in the same current range as the fuse. Pick one margin rule and apply it across all zones so you don’t end up with one-off exceptions. More margin reduces nuisance trips, but slows backup clearing and raises fault energy when the primary fails.

4. Use time current curves to expose grading conflicts early

Time-current curves are most valuable when used to identify grading conflicts early. Overlay each primary device with its backup and scan the full current range, including minimum fault current near the end of the feeder. A xfmr fault can land between pickup and instantaneous and hide a crossing unless you plot that case. Curve crossings near pickup are common on long feeders and high-impedance faults, so don’t stop at high-current points. Instantaneous elements set too low can jump ahead of downstream devices during close-in faults. Mark the currents where coordination must hold so your review stays consistent. When a conflict appears, fix the cause first, such as pickup, delay, or instantaneous reach, before you spread changes everywhere.

5. Tune protection timing from the load outward, not relay by relay

The cleanest tuning flow runs from the load outward. Set laterals and branch devices first, then set the midline recloser or sectionalizer, then set the feeder relay, and finish with upstream backup. A radial feeder often needs lateral fuses to clear single-phase faults while the main recloser clears temporary faults on the trunk. Starting upstream first forces you to revisit every downstream curve after each tweak. Downstream pickup must ride through load pickup and xfmr energization, or nuisance trips will dominate your tuning time. Cold load pickup after an outage can also look like a fault, so check it first before you tighten pickup too. After downstream settings stabilize, upstream edits become small, and the coordination picture remains readable.

6. Validate coordination across normal, contingency, and fault cases

A study that only checks the normal one-line will miss the states that break coordination. Test feeder ties open and closed, a xfmr out of service, minimum and maximum source strength, and generation connected and disconnected. A tie closure can reduce the fault current seen by a downstream device and push it into a slower part of its curve. A generator can reverse current and trip a non-directional element for an upstream fault. Run one weak-fault case and one close-in case so you see both pickup timing and instantaneous reach. Keep the scenario set short but strict, and rerun it after every tuning change. SPS SOFTWARE helps when you need physics-based network behavior and editable protection logic in the same workspace.

7. Reconfirm coordination after setting changes or network modifications

Coordination will drift after every change, even when relay settings stay the same. A new cable, a feeder extension, grounding changes, added capacitance, or a different breaker model will shift fault levels and clearing times. A feeder extension often drops minimum fault current, so end-of-line faults sit closer to pickup and expose curve crossings. A quick setting tweak to stop a nuisance trip can remove spacing you relied on for backup. Keep the previous setting file and curve set so you can roll back if a field test reveals a new problem. Treat updates like controlled changes and record the reason, affected devices, and fault cases rerun. Replot the time current curves after each modification so you can see what moved

Applying these methods to new studies and existing protection schemes

Applying these methods works best when you treat relay coordination as a controlled engineering process rather than a one-time calculation. New studies benefit from a clean sequence where data validation, protection intent, margins, and tuning order are fixed before any curves are adjusted. That structure prevents early choices from forcing compromises later and keeps coordination defensible during reviews.

Existing schemes require more discipline because history works against you. Legacy settings often reflect past outages, rushed fixes, or copied logic from similar feeders. Start by rebuilding the coordination logic using current system data rather than trusting inherited curves. Plot fresh time current curves and compare them against actual operating scenarios, not just the conditions assumed when the settings were first applied.

“That habit keeps reviews short.”

Documentation matters as much as settings. Each pickup, delay, and instantaneous choice should tie back to a protection objective and a verified fault case. When system changes occur, that record makes it clear what must be rechecked and what can remain untouched. Teams using SPS SOFTWARE often keep models, assumptions, and curves linked, which shortens reassessment cycles and reduces debate during approvals.

Over time, disciplined execution shapes outcomes. Coordination schemes that remain stable do so because engineers repeatedly apply the same checks, not because the system stays simple.

Electrical Engineering, Power Systems, University

9 Introductory models for teaching power engineering

by Ines Eberena

December 4, 2025

Key takeaways

Introductory models that are concrete, visual, and grounded in physics help students connect equations to behaviour and build early trust in their own intuition.
A small, reusable set of introductory models supports core teaching goals across voltage and current basics, transients, three-phase systems, converters, machines, feeders, and protection.
Carefully structured beginner exercises that focus on one concept at a time help students build modelling confidence while giving instructors clear visibility into where learners struggle.
Classroom examples and teaching templates that grow from simple circuits to more complex systems create continuity across courses, labs, and early research or project work.
SPS SOFTWARE provides an education-ready simulation platform that supports introductory models, beginner exercises, and classroom examples within open, physics-based system modelling workflows.

The first teaching models you choose in power engineering can either confuse students or make everything finally click. Early circuits, sources, and machines set the tone for how students picture voltage, current, and power. When those introductory models are concrete, visual, and grounded in physics, learners start to trust their intuition. When they are abstract or overloaded, learners often memorize formulas without really grasping why the system behaves as it does.

Educators and lab leads carry a quiet pressure here, because there is rarely enough time or lab budget to cover everything. You want simple models that still feel authentic to modern grids, converters, and protection schemes. You also need starter models that scale into research projects, hardware-in-the-loop (HIL) experiments, and industry-focused assignments. Choosing a clear set of introductory models gives students that bridge, so they can move from basic exercises to confident system-level reasoning.

How introductory models support early power engineering learning goals

Introductory models act as scaffolding for the mental picture students build of electrical power systems. Instead of starting from large, opaque networks, learners can focus on a few components and see how each equation maps to an observable behaviour. This approach supports learning goals such as interpreting phasor relationships, reading waveforms, and connecting steady-state calculations with time-domain responses. When students see clear cause and effect between parameter changes and simulation output, they start to link theory from lectures with the physical intuition they will need as practising engineers.

Good starter models also reduce cognitive overload, because students can hold the entire system in their head while still encountering realistic details. For example, a basic rectifier or feeder can include harmonics, voltage drop, or saturation effects without burying learners under dozens of parameters. This balance matters for outcomes that stress modelling skills, communication, and engineering judgement as much as pure analysis. When early lab models follow a smooth progression from single-phase circuits to converters and machines, students stay engaged and are more willing to experiment with new configurations on their own.

9 introductory models for teaching power engineering fundamentals

Introductory models for power engineering should feel simple to draw and still be honest to the physics. Each model can spotlight one or two core ideas such as transients, phasors, switching, or protection logic, instead of trying to cover an entire course outline at once. When you treat these configurations as reusable teaching templates, students recognise patterns and gain confidence reusing topologies with new parameters or control strategies. The models described here also work well as classroom examples inside simulation tools, so students can start from a clear base and then extend it step by step.

1. Single-phase resistive load to introduce voltage and current basics

A single-phase source feeding a resistive load is often the first model where students see voltage, current, and power relate cleanly. With a simple sinusoidal source and a resistor, learners can confirm Ohm’s law, inspect phase alignment, and connect phasor diagrams to time-domain waveforms. They can also compute instantaneous power and average power, then verify those values against simulation measurements. This kind of introductory model shows students that equations from lectures are not abstract; they describe exactly what appears on the scope.

From a teaching standpoint, this configuration supports many beginner exercises without much extra setup. Students can vary the resistance, change the source amplitude or frequency, and compare measured values to hand calculations. You can ask them to compute current and power for several operating points, then check results directly in the simulation tool. As they repeat these steps, learners become comfortable wiring sources, loads, and measurement blocks, which makes more complex circuits feel far less intimidating later.

2. Resistor–capacitor and resistor–inductor circuits for building confidence with transient response

Resistor–capacitor (RC) and resistor–inductor (RL) circuits give students a safe place to practise transient concepts before they meet large power systems. A simple step in voltage or current produces the exponential charging or decaying behaviour they have seen in differential equations. Students can measure time constants, compare analytical solutions with simulation plots, and see how component values affect transient duration. This experience makes “transient response” feel like a concrete pattern instead of a purely mathematical topic.

In the simulation tool, you can ask learners to sweep resistance or capacitance and record how the time constant changes. They can apply different types of inputs, such as steps, ramps, or pulse trains, and document how the waveforms respond. RC and RL circuits are also a gentle introduction to numerical issues like step size and simulation time, since poorly chosen settings can distort the expected response. Once students trust their understanding of these basic transients, they approach switching converters and machine models with much more confidence.

3. Three-phase balanced source feeding a simple load model

A three-phase balanced source with a simple load is often the first time students see how their single-phase intuition extends to practical power systems. With a balanced three-phase voltage source feeding a resistive or impedance load, they can inspect line-to-line and phase voltages, currents, and power. This model reinforces symmetry, phasor relationships, and the way power remains constant over time in a balanced situation. Learners also see how single-line diagrams relate to full three-phase representations in the simulation.

For exercises, you can ask students to compare star and delta connections for both loads and sources. They can calculate expected line currents and powers, then verify those values against simulation results across several loading conditions. The same model can be gently extended by introducing a small imbalance or harmonics, allowing advanced groups to ask richer questions without starting from a new file. Using this configuration early helps students read three-phase plots comfortably, which pays off later for machines, converters, and feeders.

4. Ideal transformer model for studying flux, turns ratio, and scaling

An ideal transformer model helps students understand how voltage and current scale between windings and why that matters for system design. With a simplified representation that ignores losses and magnetizing current at first, learners can focus on the turns ratio and basic flux relationships. They can apply a single-phase source, connect different loads on the secondary side, and check how the reflected impedance looks from the primary. This direct connection between algebraic ratios and simulation measurements supports a strong conceptual foundation.

In teaching exercises, you might start with unloaded and fully loaded cases, then introduce partial loading and short-circuit conditions. Students can compute expected primary current from the secondary load and compare it with simulation values for several turns ratios. The model also supports discussion of per-unit quantities and how transformers help manage voltage levels across networks. Once learners grasp the ideal case, you can add realistic effects such as copper loss or magnetizing branches, showing how those refinements change behaviour without discarding the core idea.

“Beginner exercises are often where students decide whether power engineering feels approachable or intimidating.”

5. Diode bridge rectifier model for teaching converter fundamentals

A single-phase diode bridge rectifier introduces students to power electronics, non-linear conduction, and the link between alternating current (AC) and direct current (DC). With a simple transformer or source feeding a full-bridge diode arrangement and a resistive or resistive–capacitive load, learners can see how the output voltage waveform looks and how ripple appears. They can distinguish between average, root-mean-square (RMS), and peak values, then relate those values to component ratings. This model also prepares students for discussions about harmonics and power quality.

As a beginner exercise, you can ask students to vary the load, add a smoothing capacitor, and observe how ripple and current waveforms change. They can compute theoretical average DC voltage for a given AC input and compare it with simulated values under different loading conditions. The rectifier configuration also invites questions about diode conduction intervals, reverse-recovery assumptions, and the impact of transformer leakage inductance if you later introduce non-ideal elements. Because this model shows both the electrical and waveform consequences of switching, it forms a natural bridge to more advanced converters.

6. Direct current buck converter with open control for waveform reasoning

A direct current (DC) buck converter with open-loop control lets students relate duty cycle, inductor current, and output voltage in a very visual way. Starting with a DC source, a controlled switch, a diode, an inductor, and a capacitor, learners can see how the converter steps voltage down based on switching patterns. They can apply a basic pulse-width modulation (PWM) signal with a fixed duty cycle and compare theoretical average output voltage with simulation results. This teaches the connection between ideal duty-cycle formulas and the ripple they actually observe.

For structured exercises, you might ask students to vary duty cycle and switching frequency while keeping the load constant, then record how current and voltage ripple respond. They can also explore continuous and discontinuous conduction modes by changing inductance or load, documenting what happens to the inductor current waveform. These experiments help learners practise probing multiple nodes, configuring measurement blocks, and annotating plots with key operating points. When students later encounter closed-loop control or more complex converter topologies, they already understand the waveform stories underneath.

7. Synchronous generator model with simplified mechanical input

A synchronous generator model with a simplified mechanical input introduces the link between mechanical and electrical power. Students can set a mechanical torque or speed input and see how it affects terminal voltage, current, and power for different loading conditions. They start to understand concepts such as power angle, frequency, and the relationship between excitation and output. This model also opens the door to discussions about stability, but in a context that still feels manageable for early learners.

Teaching exercises can begin with a generator connected to a simple infinite bus or a defined three-phase load. Students can vary mechanical torque and monitor electrical power and frequency response, noting how the system reacts when loading changes quickly. They can also compare constant-voltage and constant-power scenarios, relating simulation behaviour to operating points they have studied in lectures. Once they are comfortable, you can introduce basic control elements for voltage regulation, making a clear link between physical machines and higher-level control design.

8. Simple feeder model for exploring voltage drop and power flow

A simple radial feeder model helps students see how power flows along a line and why voltage drops under load. With a source at one end, a line represented by series impedance, and one or more lumped loads, learners can visualize voltage magnitude and angle at each bus. They discover how both resistance and reactance influence voltage profiles and current levels. This gives substance to concepts like power factor, line loading, and thermal limits that might otherwise feel abstract.

Exercises can invite students to vary load levels along the feeder, compare lightly loaded and heavily loaded cases, and compute expected voltage drops from basic formulas. They can also try adding distributed generation at a downstream node to see how it affects local voltages and upstream flows. The same model can support both steady-state and time-domain studies by switching between phasor-based and electromagnetic transient representations. As students grow more comfortable, you can extend the feeder with additional branches, taps, or basic protection devices, while still keeping the underlying structure recognisable.

9. Overcurrent protection relay logic to introduce coordination concepts

An overcurrent protection relay model introduces learners to protection concepts and the logic that guards equipment. With a simple feeder and two or three protective devices, students can see how pickup currents and time–current curves affect tripping behaviour. They start to understand the tradeoff between sensitivity and security, and why coordination across multiple devices matters. This model turns protection settings from numbers on a sheet into behaviours they can watch in the time traces.

In guided work, students can simulate faults at different locations and observe which device trips first under various settings. They can adjust pickup values and time dial settings, then verify coordination by plotting trip times as a function of fault current. You can also stage scenarios where miscoordination causes unnecessary outages, prompting students to correct settings and justify their choices. Through this process, protection stops being an afterthought and becomes a clear part of how they think about system design.

Summary of introductory models

#	Model	Teaching focus	Typical beginner exercise
1	Single-phase resistive load	Voltage, current, power basics	Sweep resistance and compare calculated and measured power
2	Resistor–capacitor and resistor–inductor circuits	Transient response and time constants	Change component values and measure time constants
3	Three-phase balanced source with simple load	Phasors, three-phase symmetry, power calculations	Compare star and delta connections for loads and sources
4	Ideal transformer	Turns ratio, impedance reflection, scaling	Analyse unloaded, loaded, and short-circuit cases
5	Diode bridge rectifier	AC to DC conversion, ripple, harmonics	Add smoothing capacitor and study ripple versus load
6	Direct current buck converter with open control	Switching, duty cycle, ripple, conduction modes	Vary duty cycle and frequency while tracking output voltage and inductor current
7	Synchronous generator with simplified mechanical input	Mechanical–electrical power link, basic stability	Step mechanical torque and observe electrical power and frequency
8	Simple feeder	Voltage drop, power flow, impact of loading	Change load distribution and examine voltage profiles along the line
9	Overcurrent protection relay logic	Coordination concepts, protection behaviour	Adjust relay settings and verify correct tripping sequence under different fault cases

A core set of starter configurations gives students a gentle climb from basic voltage–current relationships to converters, machines, feeders, and protection logic. Each configuration can be reused across multiple weeks by adjusting only a few parameters or measurement targets, which helps students focus on physics instead of tool settings. Because the same templates connect naturally to later projects and internships, learners also see why introductory work with simple models deserves careful attention and practice. When you structure your lab programme around clear introductory models, the teaching team gains a predictable rhythm that supports both early confidence and long-term mastery.

“When those introductory models are concrete, visual, and grounded in physics, learners start to trust their intuition.”

How beginner exercises help students build modelling confidence

Beginner exercises are often where students decide whether power engineering feels approachable or intimidating. Short, focused tasks let learners practise the modelling moves they will repeat throughout their studies, such as wiring blocks, configuring sources, and setting measurement probes. When you pitch these tasks at the right level, students stay curious instead of worrying about every possible mistake. Carefully designed beginner exercises also give teaching assistants and lab instructors a common reference, so feedback remains consistent across sections and semesters.

Clear scope per task: A single exercise asks students to focus on one concept, such as steady-state power or transient behaviour, instead of mixing several new topics at once. This helps learners feel a sense of completion and reduces frustration when they review their results later.
Repetition with slight variation: Students repeat a familiar topology, such as a single-phase source feeding a new load, while changing only one parameter range or measurement focus. This pattern strengthens muscle memory in the simulation tool and prepares them to extend introductory models without fear.
Immediate visual feedback: Tasks encourage students to inspect waveforms, phasors, or numeric logs right after running a case, instead of just checking an answer key. Students start to read plots as narratives about system behaviour, which is a key modelling skill.
Built-in scaffolding for reports: Each exercise hints at simple plots, tables, or comparisons students can reuse in later lab reports and design projects. This makes documentation feel less like an extra chore and more like a natural extension of the simulation work.
Space for exploration marks: Grading schemes reward students who test an extra operating point or save an alternate solution file, even if the rubric only formally asks for one case. This invites experimentation and lets instructors showcase creative attempts during review sessions.
Alignment with assessment goals: Exercises are mapped directly to course outcomes such as power-factor correction, short-circuit analysis, or converter efficiency, so both staff and students know why each task matters. Clear alignment reduces confusion about grading and strengthens the link between introductory work and later exams or capstone projects.

When these patterns show up consistently throughout a course, students start to recognise that modelling is a learnable craft instead of a mysterious talent. They develop habits such as saving labelled versions of each model, annotating waveforms, and checking units, which carry into internships and early career roles. Educators gain a clearer view of where students struggle, since each beginner exercise maps tightly to one or two skills instead of many at once. Over time, this steady structure produces cohorts of learners who feel comfortable opening new models, modifying parameters, and trusting the simulation results they obtain.

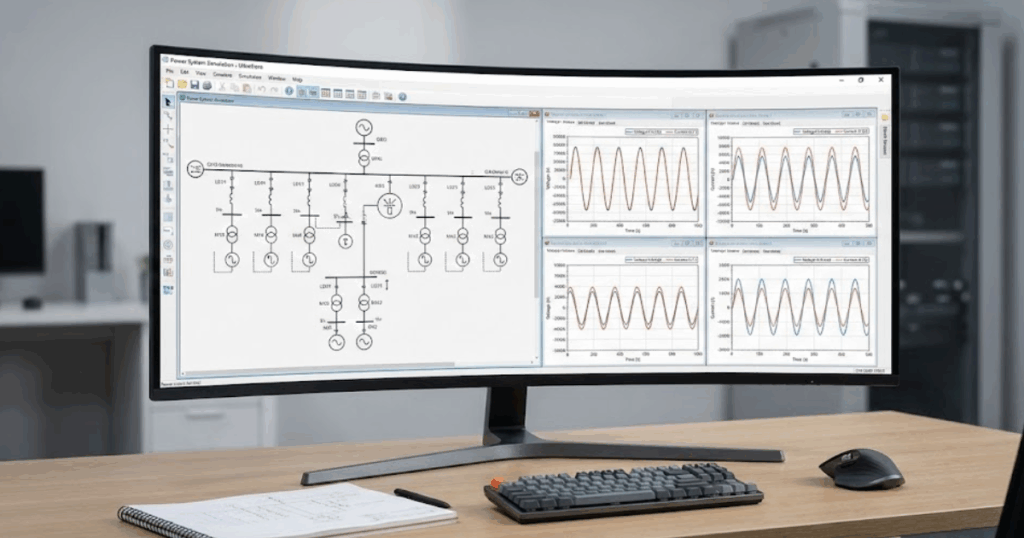

How SPS SOFTWARE supports clear teaching templates and classroom examples

SPS SOFTWARE gives educators and lab managers a consistent simulation platform for introducing, refining, and reusing teaching templates. The platform builds on a Simulink native workflow for modelling electrical power systems and power electronics, so it fits naturally into existing MATLAB and Simulink based curricula where students already complete control and signal-processing assignments. Users can draw on libraries that cover machines, converters, grids, loads, protections, and controls, which makes it straightforward to instantiate each of the introductory models described earlier without resorting to opaque black-box blocks. Because SPS SOFTWARE retains continuity with legacy SimPowerSystems projects while aligning with current MATLAB releases, institutions avoid dual toolchains and can modernise teaching material without starting from a blank slate.

For academic staff, another strength lies in the open, physics-based component models, which students can inspect, modify, and relate to equations from lectures instead of treating them as hidden code. SPS SOFTWARE materials include example models, tutorials, and technical references that support course design, thesis supervision, and self-guided learning, so departments can standardise on a shared set of classroom examples across several courses. When educators feel confident that their simulation platform will track ongoing MATLAB and Simulink updates, they can focus more energy on improving pedagogy, assessment quality, and lab safety rather than chasing version conflicts. These factors help SPS SOFTWARE stand as a trusted modelling companion for institutions that care about clarity, reproducibility, and long-term credibility in power engineering education.
