Key Takeaways

• Wrong study scope and wrong model detail create errors long before solver output appears.
• Base quantities, source data, load behaviour, and control limits shape result accuracy more than most teams expect.
• Model trust comes from repeatable checks against known conditions, not from tidy plots or complex schematics.

Most wrong power system simulation results come from setup errors, not math errors.

Engineers trust a power system simulator when the model reflects the study question, the data, and the operating limits that shape system behaviour. Trouble starts when a convenient template replaces a verified network model or when a stable waveform hides a bad assumption. You’re usually not dealing with a software failure. You’re dealing with a model that answered a different question than the one you meant to ask.

The 8 mistakes that distort power system simulation results

A power system model loses accuracy when its structure, data, or numerical settings do not match the study objective. Each mistake below creates a specific kind of error, and each one can be checked early before you spend hours trusting results that won’t hold up.

“Engineers trust a power system simulator when the model reflects the study question, the data, and the operating limits that shape system behaviour.”

1. Using a study model that does not match the question

A model must match the time scale and physics of the question you’re asking. A steady-state load flow will show bus voltages and line loading, but it won’t tell you how a relay timer responds or how converter current peaks in the first milliseconds of a fault. A common miss appears when an averaged inverter model is used to judge sub-cycle current stress during a breaker operation. That result will look clean, yet it hides the switching and control detail that actually matters. If the study scope is vague, the model becomes a compromise and your answers lose value.

2. Mixing per unit bases across the network model

Per unit errors quietly distort almost every calculated quantity in a network study. Trouble often starts around transformers, where engineers carry a 100 MVA base through one section and a different base through another without converting impedances. A 13.8 kV to 69 kV transformer is a common place for this slip, because the voltage base shifts and the impedance looks reasonable even when it is not. The model still runs, which makes the mistake easy to miss. Short-circuit levels, voltage drops, and machine currents then look believable while every downstream result is biased.

3. Reusing default load models without checking behaviour

Default load blocks are useful for setup speed, but they often hide the wrong electrical behaviour. A constant power load can be acceptable for a planning snapshot, yet it will misrepresent voltage recovery if the actual site has induction motors, heating loads, or mixed feeder demand. A motor-heavy industrial bus will pull current very differently after a sag than a static constant power block suggests. That difference affects fault recovery, motor stalling, and protection pickup. If you don’t check how the load model reacts to voltage and frequency changes, the study will tell a neat story about a system that doesn’t exist.

4. Estimating source strength without verified grid data

Source strength shapes fault current, voltage stiffness, and control interaction, so guessed values will corrupt the whole model. Engineers often plug in a short-circuit level from memory or reuse data from a nearby substation and assume the upstream grid is close enough. A weak connection point for a wind plant, for instance, will behave very differently from a strong urban feeder with the same nominal voltage. Converter stability, flicker response, and fault current all shift when the Thevenin equivalent is wrong. If you haven’t verified source impedance and X/R ratio, you haven’t verified the study.

5. Picking a solver step that misses fast events

Numerical settings matter as much as network data when the study includes fast transients. A solver step that works for a slow voltage profile won’t capture capacitor energization, converter commutation, or a breaker restrike. You’re likely to miss the very spike or oscillation you set out to inspect if the time step smooths it away. That problem shows up when current peaks look modest and switching waveforms appear unusually clean. The model is not calm in that case. The solver is simply averaging out behaviour that occurs between samples, and your protection or insulation assessment will be wrong.

6. Starting dynamic studies from an invalid operating point

Dynamic results are only credible when the starting point is physically consistent. A common error appears when generator dispatch, tap positions, or control references are entered manually and the model begins from a state that could never exist in normal operation. A synchronous machine might start with an exciter output beyond its limit or with terminal voltage that doesn’t match the solved network condition. Once the disturbance is applied, you can’t tell which oscillation came from the event and which came from the bad initialization. The waveform looks busy, but it reflects startup correction rather than system response.

7. Leaving control limits outside the simulation model

Control systems need their limits inside the model or the results will overstate stability and recovery. Engineers sometimes model the main controller and skip current clamps, saturation, deadbands, rate limits, or protection interlocks because the core loop seems more important. A grid-forming inverter, for example, will appear heroic during a voltage dip if its current ceiling is missing. The same happens with exciters and governors when minimum and maximum outputs are left out. The controller then produces elegant responses that no physical device can sustain. If a control action looks perfect, check the limits first because something important often isn’t there.

8. Trusting results before any independent model check

A model should earn trust through simple checks before it is used for deeper studies. Engineers skip this step when the one-line diagram is complete and the waveforms look tidy, but appearance is a poor test. A feeder model should reproduce known voltages, losses, and fault levels before you use it for contingency work. A transparent workflow matters here, and SPS SOFTWARE is useful in that context because you can inspect assumptions, parameters, and equations instead of treating the power system simulator as a sealed box. If the base case fails a basic check, every later scenario will carry the same error.

“If the base case fails a basic check, every later scenario will carry the same error.”

How to check model credibility before you trust results

A credible model reproduces known operating conditions, respects device limits, and gives stable answers under simple cross-checks. You should be able to explain every major assumption in plain language. If you can’t trace a result back to verified data and model structure, more detail won’t rescue it.

• Match the model type to the study time scale.
• Recheck every base quantity across transformers.
• Compare load response against site knowledge.
• Validate source impedance with utility data.
• Confirm the base case before any disturbance study.

That review habit is what separates a useful engineering model from a polished diagram. Teams that keep assumptions visible, test simple cases first, and question clean-looking waveforms will catch more errors before they become report material. SPS SOFTWARE fits that practice when you need open, physics-based models that you can inspect and revise with care. Good modelling isn’t about making the power system simulator look busy. It’s about making every result stand up to scrutiny.

Key Takeaways

• EMT and RMS serve different study purposes because they solve different physics at different time scales.
• Protection detail, converter controls, and subcycle effects are strong signals that EMT is the better fit.
• Model quality depends as much on validated parameters and scope control as it does on simulation detail.

Choose EMT when the study depends on waveform detail, and choose RMS when the study depends on slower electromechanical behaviour.

That split matters more now because converter-based generation keeps adding fast controls to systems that were once dominated by synchronous machines. Wind and solar supplied 13.9% of global electricity in 2023, which means more studies now sit closer to inverter controls, fault response, and switching effects. You will get better answers when your model matches the physics that decides the result. You will get misleading confidence when it does not.

“An electromagnetic transient simulation is built for events where the waveform shape changes the outcome.”

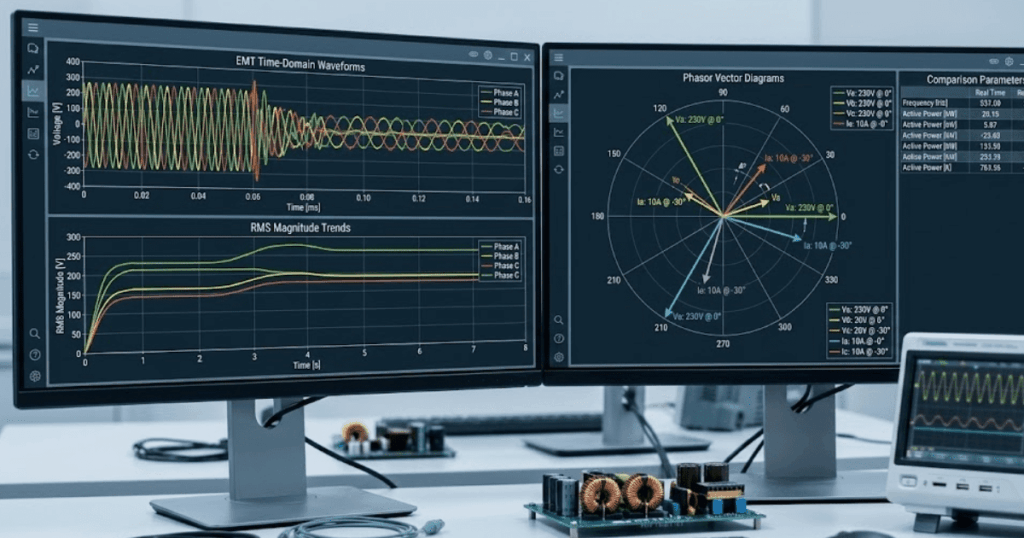

EMT tracks waveforms while RMS tracks phasor behaviour

EMT and RMS differ mainly in what they solve and what they ignore. EMT follows instantaneous voltages and currents at very small time steps. RMS replaces fast waveforms with phasors and averaged quantities. You get waveform fidelity from EMT and study speed from RMS.

A feeder fault illustrates the split clearly. EMT will show the exact fault inception angle, the dc offset in current, and the way a breaker or converter responds over microseconds and milliseconds. RMS will show the same event as a balanced or unbalanced phasor disturbance with a much smoother response. That is often enough when you care about voltage recovery, power flow redistribution, or rotor angle movement.

The important point is not model sophistication. It is model relevance. Electromagnetic transient simulation is built for events where the waveform shape changes the outcome. RMS modelling is built for cases where the averaged sinusoidal state carries the answer. If your result depends on what happens within a cycle, the phasor abstraction will hide too much.

RMS models fit stability studies with slower dynamics

RMS models are the right fit when the study question sits on a slower time scale than the power frequency waveform. They capture electromechanical swings, voltage regulation, and frequency response efficiently. They also support large networks and many contingencies without excessive run time. That makes them a practical choice for stability work.

A generator trip study shows why. You usually want to know how frequency dips, how governors respond, how automatic voltage regulators support voltage, and whether rotor angles remain bounded. None of those answers depends on individual switching pulses or travelling wave effects. An RMS model lets you screen many disturbances across a transmission network and compare credible operating cases quickly.

You should still be disciplined about model scope. RMS will not rescue a poor representation of controls, load recovery, or protection logic. It simply gives you a strong fit for slower behaviour. When the pass or fail measure is damping, settling, frequency nadir, or post-fault voltage recovery, RMS will usually give the answer you need with less modelling burden.

EMT models fit studies with subcycle switching behaviour

EMT models fit studies where subcycle detail decides the result. They resolve switching events, fast control loops, saturation effects, and non-sinusoidal waveforms directly. That makes them the correct tool for converter commutation, transformer inrush, and many detailed fault studies. RMS models smooth away those mechanisms.

A transformer energization case is a simple illustration. The inrush current peak depends on residual flux, point-on-wave closing, and core saturation, all of which unfold within fractions of a cycle. An RMS model can approximate the event, but it will not reproduce the actual waveform that a relay, filter, or converter controller sees. The same limit appears with pulse-width-modulated converters and dc-link control interactions.

EMT is not just about getting a prettier waveform. It is about representing the mechanism that causes a trip, an overvoltage, or a control instability. If that mechanism lives inside the cycle, your model needs to live there too. That is why electromagnetic transients matter most when switching detail and non-linear effects are part of the study question.

Study time scale should set your model choice

Time scale is the quickest and most reliable screen for model choice. A study dominated by seconds and electromechanical motion belongs in RMS. A study dominated by microseconds, milliseconds, or point-on-wave effects belongs in EMT. Mixed cases need you to decide which time band actually determines the pass or fail outcome.

Protection and control sequences often look mixed at first glance. A fault may start in microseconds, provoke relay logic over milliseconds, and reshape system frequency over several seconds. Your model choice should follow the decision point, not the event duration. If you only need to know system recovery after a cleared fault, RMS is enough. If you need to know why the relay operated late or why the converter blocked, EMT is the safer choice.

That is also where transparent workflows matter. SPS SOFTWARE gives you a way to keep models inspectable and editable, so you can choose detail level with intent instead of treating the simulator as a black box. Teams work faster when they can see which equations and assumptions are carrying the answer.

Protection studies often need detail beyond RMS models

Protection studies often need more detail than RMS can provide because relays respond to quantities that change within a cycle. Fault inception angle, current dc offset, current transformer saturation, and voltage transformer transients can alter what the relay measures. EMT will represent those effects directly. RMS will often smooth them into a cleaner event than the relay actually sees.

A distance relay on a long line is a good case. The apparent impedance during the first cycles after a fault can shift because of cvt transients, fault resistance, and waveform distortion. A differential relay can also react badly when current transformer saturation distorts one side more than the other. Those are not minor details when your study asks why a trip happened or why it failed to happen.

RMS still has a place in protection work. It is useful for broad coordination checks, grading margins, and large fault sweeps where the relay measurement process itself is not under test. Once the study moves from settings review to relay behaviour under stress, EMT becomes much more than a refinement. It becomes the model class that matches the protection physics.

Systems with many converters push studies toward EMT

Systems with many converters push modelling toward EMT because converter controls react on time scales that phasor models often compress too aggressively. Grid-following controls, current limits, phase-locked loops, and dc-link dynamics can interact within milliseconds. Those interactions can decide stability, protection response, or equipment stress. RMS can miss them even when the wider network looks slow.

A weak-grid solar plant is a familiar example. Voltage dips, current limiting, and phase tracking can create behaviour that looks stable in an averaged RMS representation but becomes oscillatory or blocked in EMT. That matters more as converter penetration rises. Solar photovoltaic generation rose by 25% in 2023, so you will face more studies where inverter detail is part of the main question.

You do not need EMT for every converter case. A well-validated average-value representation can still support many planning studies. The warning sign appears when control limits, harmonics, dc coupling, or weak-grid interaction sit near the event you care about. Once those features are close to the boundary of acceptable performance, waveform-level modelling stops being optional.

Accuracy gains come with heavier model cost

EMT gives more physical detail, but it also asks for more data, more computation, and more care in model building. RMS asks less from you and often returns answers faster. The better choice is the one that captures the deciding mechanism with the least unnecessary burden. More detail will not help if the extra detail is poorly known.

A plant-level study can illustrate the tradeoff. An RMS network with validated machine and controller models might let you test dozens of contingencies in the time one EMT case takes to set up and run. That speed matters when you are screening operating points, seasonal conditions, or protection settings. EMT becomes costly when switching devices, control blocks, and non-linear elements all require careful parameterization.

False precision is the main risk. An EMT model with guessed controller gains or missing transformer saturation data can look authoritative while answering the wrong question. RMS has its own limits, but it often forces clearer simplification. You will make better choices when you treat model fidelity as a targeted tool rather than a badge of seriousness.

“False precision is the main risk.”

A practical screen for choosing EMT or RMS

You should choose the simplest model that still captures the physics that decides the result. RMS is the right mode when averaged quantities answer the study question. EMT is the right mode when switching, control interaction, fault inception, or relay measurement set the outcome. Clear model purpose will save time and avoid false confidence.

Use this screen before you build or refine a model:

• Choose RMS when your pass or fail metric is frequency, rotor angle, or slower voltage recovery.
• Choose EMT when the result depends on subcycle waveform shape or switching events.
• Choose EMT when relay behaviour depends on saturation, distortion, or point-on-wave effects.
• Choose RMS first when you need broad contingency screening across a large system.
• Choose the model with the best validated parameters when both modes seem plausible.

That judgment gets better with practice, and it improves further when the models stay open enough for you to inspect the assumptions. SPS SOFTWARE fits that kind of work because clear, physics-based modelling helps teams explain results instead of just presenting them. Good studies come from disciplined scope, validated parameters, and the willingness to use less detail when less detail gives the right answer.

Key Takeaways

• Accurate power system simulation starts with a tight study goal, defined outputs, and pass fail criteria that set the required model scope.
• RMS and EMT approaches solve different time scales, so the right choice is the one that preserves the physics that controls your risks and settings.
• Trust comes from disciplined execution with verified data, stable numerical settings, and validation checks that make assumptions and limits visible.

Engineers get dependable results when the model is built to answer a specific technical question, with a clear time scale, clear outputs, and data that matches the needed accuracy. That approach keeps you from chasing noise in the results or trusting plots that look right but are based on the wrong assumptions. Poorly specified studies often turn into rework, and power interruptions in the United States have been estimated to cost $28 billion to $169 billion per year, which puts a price tag on bad engineering information. Good modelling reduces that risk because it makes uncertainty visible early.

Power system simulation is not a single technique. You’ll choose between steady and transient studies, between RMS simulation and EMT simulation, and between simple and detailed component representations. Each choice trades speed, fidelity, and data burden in a way that directly affects the trust you can place in results. When you treat those choices as an engineering design task, the model becomes a reliable test bench for behaviour, limits, and protection response.

“Accurate electrical power system modelling comes from disciplined choices, not bigger models.”

Define study goals and required outputs before building models

Start with the question the study must answer and the outputs you will accept as proof. Define the disturbance types, the time window, and the signals you’ll read, such as voltages, currents, torque, frequency, or protection pickups. Lock down pass fail criteria early, not after plots look appealing. That discipline keeps the model aligned to engineering intent.

Goals that sound similar often require different modelling. A voltage ride-through check needs event timing, control limits, and sometimes switching behaviour, while a planning study often needs voltage profile, losses, and thermal loading under many operating points. Stability work needs angles, frequency, and damping, with careful disturbance size selection. Fault studies need correct source impedance and protection logic assumptions, plus a clear definition of the fault location and impedance.

Write down what “accurate enough” means in numbers, not adjectives. A 1% voltage magnitude target and a 10 ms timing tolerance lead to different choices than a 5% target and a 200 ms tolerance. Treat model scope like a boundary condition, then stick to it when stakeholders request extra detail. The model will stay useful when its purpose stays narrow and testable.

Choose network detail and data quality that match accuracy needs

Network fidelity should match the physics that shapes your outputs. Use three phase representations when unbalance, grounding, harmonics, or protection depends on phase detail, and use positive sequence when the study is balanced and focused on bulk behaviour. Parameter quality matters as much as topology, because small impedance errors can flip fault current, voltage drop, and control gains. A simpler model with verified data will beat a detailed model with guessed values.

Data work should be planned like engineering work, with ownership and checks. Nameplate values, test reports, and commissioning records will disagree, so choose a priority order and document it. Pay attention to base values, unit consistency, and how the utility defines short circuit strength at the point of interconnection. Keep the “source of truth” in a single place so updates do not drift across files.

The fastest way to avoid model drift is to validate inputs before tuning anything else.

• Confirm system base quantities and per unit conversions across every subsystem.
• Check line and cable R, X, and capacitance against length and conductor data.
• Verify transformer vector group, tap range, and impedance at the rated base.
• Validate generator or grid Thevenin impedance at the study voltage level.
• Match load composition assumptions to the operating scenario being studied.

Understand RMS and EMT simulation and when each fits

The main difference between RMS simulation and EMT simulation is what gets averaged out. RMS simulation tracks slower electromechanical and control behaviour using phasors, so it runs quickly for minutes of system time. EMT simulation resolves instantaneous waveforms, so it captures switching, harmonics, and fast control interactions. Choose the method that keeps the physics you need and drops the rest.

A concrete case makes the choice clear. A 25 kV feeder with a large inverter-based plant can show clean steady voltage in an RMS run, yet still trip on a fast undervoltage ride-through timer triggered by a capacitor bank energization transient. EMT simulation will show the peak voltage dip timing and the control saturation that drives the trip, while RMS simulation will often smooth those details away. That distinction decides protection settings, not just plot shape.

“Confidence comes from execution habits that stay consistent across projects: clear study goals, fit-for-purpose fidelity, careful numerics, and validation that can stand up to questions.”

Represent generators, loads, converters, and controls with usable fidelity

Component fidelity should be chosen to match the study outputs, not to match the drawing library. Generators need the right level of machine model, excitation, and governor detail for stability, plus correct limiters when protection margins matter. Loads should reflect behaviour, not just power, since voltage and frequency sensitivity can drive results. Converters need control dynamics, current limits, and filtering detail aligned with the simulation method.

Control models will decide stability and protection outcomes, so treat them as first-class parts of the model. Use the same sampling, delays, and saturation logic that exist in the control implementation when timing matters. Verify that limiter interactions are represented, since current limiting can flip a voltage controller into a different mode during faults. Keep control tuning linked to the operating point, since gains that look stable at rated conditions can misbehave at light load.

Model transparency matters when you need to trust limits and corner cases. SPS SOFTWARE is often used in teaching and engineering teams that want open, editable component models so students and engineers can inspect equations, not just parameters. That approach supports better reviews because assumptions are visible, and it reduces the chance that a hidden default setting becomes the reason a study result cannot be reproduced. Usable fidelity is the level you can explain and defend in a design review.

Set numerical solvers, time steps, and initial conditions for stability

Numerical settings are part of the model, because they shape what the simulation can faithfully resolve. Time step choice sets the fastest behaviour you can trust, and solver choice sets how well the model handles stiffness from switching, saturation, and tight control loops. Initial conditions must represent an operating point that is physically consistent, or the first seconds of data will be dominated by artificial settling. Stable numerics create stable engineering interpretation.

Time steps should be justified using the fastest dynamics you care about and the switching or sampling rates present. EMT studies often need small fixed steps to resolve switching and protection timing, while RMS studies can use larger variable steps that still preserve control dynamics and event timing. Pay attention to event handling, since breaker operations and faults create discontinuities that challenge integrators. Use tolerances that are strict enough to preserve thresholds, but not so strict that the solver churns without improving engineering value.

Initialization should be treated as a validation step, not a formality. Confirm that power flow targets match the intended dispatch and loading, and confirm that control states start within limits. Watch for hidden states like integrator windup or filter initial conditions that create nonphysical transients. A clean start makes later transients easier to interpret because the model is not fighting its own setup.

Validate models against measurements and sanity checks before sharing results

Validation turns simulation output into engineering evidence. Check that the model reproduces known steady-state values, then test simple disturbances where you can predict the direction and scale of the response. Compare timing against measured events when you have records, and keep a clear separation between model verification and model tuning. A validated model supports confident settings and protection coordination.

Sanity checks should be structured and repeatable. Confirm that power balance makes sense, that voltage drops match impedance and loading, and that fault levels match known short circuit strength. Run sensitivity checks on uncertain inputs, because a result that flips with a 5% impedance change is not ready for a setting change. Keep a clear log of what changed and why, since model drift is a common failure mode in multi-person teams.

Validation effort is justified because simulation is software, and software mistakes have measurable cost. Software defects were estimated to cost the U.S. economy $59.5 billion each year, and modelling workflows are not immune to that pattern. Treat model checks like tests, keep results reproducible, and insist on traceability from requirement to output. Sharing results becomes safer when you can show how the model earned trust.

Select power system modelling tools and integrate MATLAB/Simulink workflows

Tool selection should follow the modelling method, data needs, and review requirements you already defined. Look for transparent component representations, good handling of events, and workflows that support version control and repeatable runs. Integration with MATLAB/Simulink matters when your controls, scripts, or parameter sweeps live there. The best tool will be the one that lets you justify assumptions and reproduce results without heroics.

Practical criteria help keep tool choice grounded. Import and export options matter for network data, protection settings, and time-series inputs. Model inspection matters for education and technical reviews, because you will need to explain why a limiter engaged or why a relay picked up. Automation matters for sensitivity studies, since manual clicking often introduces silent differences between runs.

Good modelling work feels calm because each choice has a reason. SPS SOFTWARE fits teams that value physics-based, editable models and smooth MATLAB/Simulink workflows, especially when the goal is understanding behaviour rather than producing a single plot. Confidence comes from execution habits that stay consistent across projects: clear study goals, fit-for-purpose fidelity, careful numerics, and validation that can stand up to questions. That discipline will beat any shortcut, even when schedules are tight.

Key Takeaways

• Start solver selection from the study question, then match the method to the time scales and waveform detail the answer depends on.
• Treat time step, integrator choice, and tolerances as modelling parameters, since they directly control numerical damping, stability, and what features survive in the results.
• Build trust with disciplined validation, including consistent initial conditions, physical limit checks, and a short time step sensitivity run before interpreting converter or protection behaviour.

Choosing the right solver is how you get power system results you can trust.

Solver choice is not a software preference, it is a modelling choice that decides what physics your simulation can and cannot represent. A clean plot can still be wrong if the method cannot resolve the time scales that matter, or if numerical damping hides the behaviour you actually need to study. A standard lightning impulse used for insulation testing is 1.2/50 µs, and that single fact should settle one point early: some electrical questions live in microseconds, not seconds.

“Good solver selection starts with your study objective, then works backward to the model detail, the time step, and the numerical method that will hold accuracy where it counts.”

Speed matters, but it comes after correctness, because a faster wrong answer still costs you time when tests do not match, protections misoperate on paper, or controls look stable only because the solver blurred the dynamics. Treat the solver and its settings as part of your model, document them, and you will get results that hold up under review.

Define common power system solvers used in electrical studies

Power system solvers fall into a few families that each simplify the physics differently. Algebraic solvers handle steady state power flow and short circuit calculations without time stepping. Phasor and RMS time domain solvers step electromechanical dynamics using averaged network behaviour. EMT solvers step the full electrical waveforms, so switching, saturation, and fast protection effects show up directly.

Those families also differ in how they solve equations at each time step. Power flow typically uses Newton style iteration on algebraic equations, while EMT and RMS solvers integrate differential algebraic equations that combine network constraints with device dynamics. Fixed time step EMT focuses on repeatable waveform accuracy, while variable time step RMS often focuses on long runs with acceptable dynamic error. Solver terms like “explicit,” “implicit,” “trapezoidal,” and “backward Euler” describe how the integrator behaves when the system has fast and slow dynamics mixed together.

A practical way to keep this straight is to ask what your model states really represent. RMS and phasor models usually represent fundamental frequency magnitudes and angles, so they will not show PWM ripple or subcycle peaks that drive some protections. EMT models represent instantaneous voltages and currents, which is why they catch commutation overlap, diode recovery effects, and wave propagation effects when line detail matters. Once you pick the solver family, the rest of the setup is not “tuning,” it is matching the numerics to the physics you chose to represent.

Match study objectives to EMT and phasor domain simulation

EMT simulation is the right fit when the answer depends on waveform detail, fast switching, or subcycle interactions between the network and devices. Phasor and RMS simulation is the right fit when the answer depends on slower dynamics, steady state limits, or system level behaviour over many cycles. The method you choose sets a ceiling on the fastest phenomenon you can trust. That ceiling matters more than the run time.

A concrete way to choose is to frame your question as “what must be time resolved to answer this.” Consider a 13.8 kV industrial feeder with a VFD front end, a capacitor bank, and an overcurrent relay set near a sensitive process load. If you need to see capacitor inrush peaks, diode bridge commutation notches, and relay pickup on a distorted current, EMT will be the only method that shows those details without heavy assumptions. If you only need the post-event voltage recovery trend across tens of seconds after a motor restart, a phasor or RMS study will answer faster with less model detail.

Once the objective is clear, mixed workflows become easier to manage. Start with a simpler method to set initial conditions and sanity check operating points, then move to EMT only where the physics needs it. A solver does not fix missing model detail, and extra detail does not rescue a solver that cannot represent the behaviour your question depends on. Pick the method that matches the question, then set the numerics to protect that choice.

Use time step and integration settings to control accuracy

Time step and integration method control numerical error, numerical damping, and stability, so they directly shape what you will believe from a plot. A time step that is too large will smooth peaks and distort phase, even if the simulation “runs fine.” A method that is too aggressive on damping will hide oscillations that matter for control or protection. The right settings come from the fastest dynamics you must resolve, not from defaults.

Fixed step EMT usually works best when you set the step from switching frequency, the smallest L and C time constants, and the fastest control sampling in the model. A common engineering check is to keep enough points per switching period that switching edges do not collapse into one or two samples, then confirm key quantities do not change much if you halve the time step. Trapezoidal integration will preserve waveform detail well, but it can show numerical ringing if discontinuities are harsh. Backward Euler will damp high frequency content, which can help stability but can also hide the very ripple you needed to see.

• Set a maximum time step that is tied to your fastest physical time constant
• Check integrator choice against your need for ripple detail versus damping
• Align controller sample times with the simulation step to avoid timing drift
• Set nonlinear solver tolerances so currents and voltages converge tightly
• Re run a short window at a smaller step to confirm key results hold

Accuracy problems often look like “weird physics,” but the cause is numerical. Spikes at switching instants can be time step artefacts, while missing overshoot can be numerical damping. Event handling also matters, since breaker operations and limiter activations can create discontinuities that stress the integrator. When you treat the time step as a modelling parameter and not a performance knob, you will avoid long loops of trial and error.

Handle stiff networks and nonlinear devices without convergence issues

Stiff systems mix very fast and much slower dynamics, and that mix can cause explicit methods to become unstable or force impractically small steps. Nonlinear devices add iterative solves inside each step, so convergence settings become part of accuracy and not just a way to stop warnings. Ideal switches, saturating magnetics, and hard limits create discontinuities that make iterations struggle. Stable results come from a solver that matches stiffness and a model that avoids impossible idealizations.

Practical fixes usually start with the device models. Parasitic resistances, snubbers, and realistic source impedance remove infinite di or dv demands that no numerical method can satisfy. Smoother limiter functions often behave better than hard clipping, since they reduce sudden Jacobian changes during Newton iterations. Consistent initial conditions also matter, because a solver that starts far from a feasible operating point will waste iterations and can land in nonphysical states.

Tool transparency helps here because you can see what equation is actually failing when convergence breaks. SPS SOFTWARE is often used in teaching and research settings for this reason, since editable component models make it easier to spot where an “ideal” assumption created stiffness or where a limiter created an algebraic loop. Once the model is physically reasonable, implicit integration and sensible tolerances will do their job.

“Convergence success is not luck, it is the result of model realism and numerical alignment.”

Validate results using initial conditions, limits, and sanity checks

Validation is the step that proves your solver choice did not hide a modelling error. Initial conditions must match the steady state you intend, or the simulation will spend its first cycles correcting a mismatch you never meant to study. Physical limits must hold, such as capacitor voltage continuity and inductor current continuity across switching events. Basic sanity checks will catch unit errors, sign mistakes, and impossible setpoints before you trust any deeper insight.

Start with the simplest checks that do not require another tool. Confirm voltages and currents match expected magnitudes at steady state, confirm power balances are sensible, and confirm device states align with control logic. Check that protection elements see the same measurements you think you modelled, including any filtering and measurement windows. A short run with a reduced time step is also a strong check, because large differences signal numerical sensitivity that you must address before you interpret fine detail.

Limits and invariants provide another layer of confidence. Saturation should clip flux or current where the model says it should, not where the integrator can tolerate it. Energy stored in inductors and capacitors should not grow without a source, and damping should not appear from nowhere. When validation is disciplined, solver choice becomes a controlled engineering variable instead of a hidden source of uncertainty.

Avoid common solver selection mistakes in converters and protection studies

Most solver mistakes come from asking a waveform question with a non-waveform method, or from using an EMT method with settings that cannot resolve the behaviour you care about. Converter models amplify this problem because switching, control sampling, and nonlinear limits all sit close together in time. Protection models amplify it again because pickup and timing can depend on peaks, distortion, and measurement windows. You will get better outcomes when you treat solver settings as part of the protection or converter design, not as an afterthought.

Phasor studies often fail for converter and protection work when key triggers depend on distortion, DC offsets, or subcycle features. EMT studies fail when the time step is too large, when the integrator adds damping that hides ripple, or when ideal device models create discontinuities that force convergence shortcuts. Another common issue is mixing discrete logic with a variable time step without checking event timing, since timing drift can shift relay operations or control state changes. Clear alignment between sampling, switching, and integration timing keeps those errors from creeping in.

The best long term habit is to write down what must be resolved, then pick the simplest method that still resolves it cleanly. A short pilot run that checks convergence, time step sensitivity, and measurement behaviour will save more time than chasing “weird” plots late in a project. Teams that work in SPS SOFTWARE often formalize this as part of their model setup, since transparent equations and editable models make solver assumptions visible and reviewable. That discipline, more than any single solver setting, is what turns simulation from a nice picture into engineering evidence.
